BittWare TeraBox 1400B | 4 Achronix Speedster7t, Intel Stratix 10 or Xilinx UltraScale+ FPGAs | AMD EPYC or Intel Xeon 1U Server

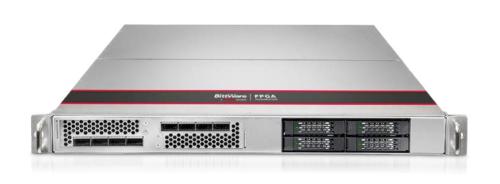

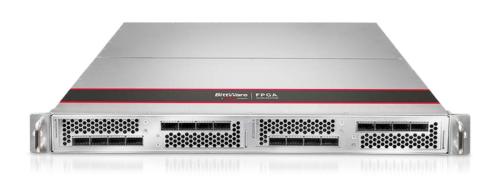

The BittWare TeraBox 1401B / 1402B and 1411B / 1412B are at the extreme of FPGA server density in a 1U chassis with four Achronix Speedster7t, Intel Stratix 10 or Xilinx UltraScale+ FPGAs. The TeraBox 1411B/1412B supports 2 FPGA cards and four removeable storage drives. These innovative products support PCIe Gen4 and feature either an AMD EPYC 7002 series or Intel 3rd Gen Xeon CPU.

1U CHASSIS

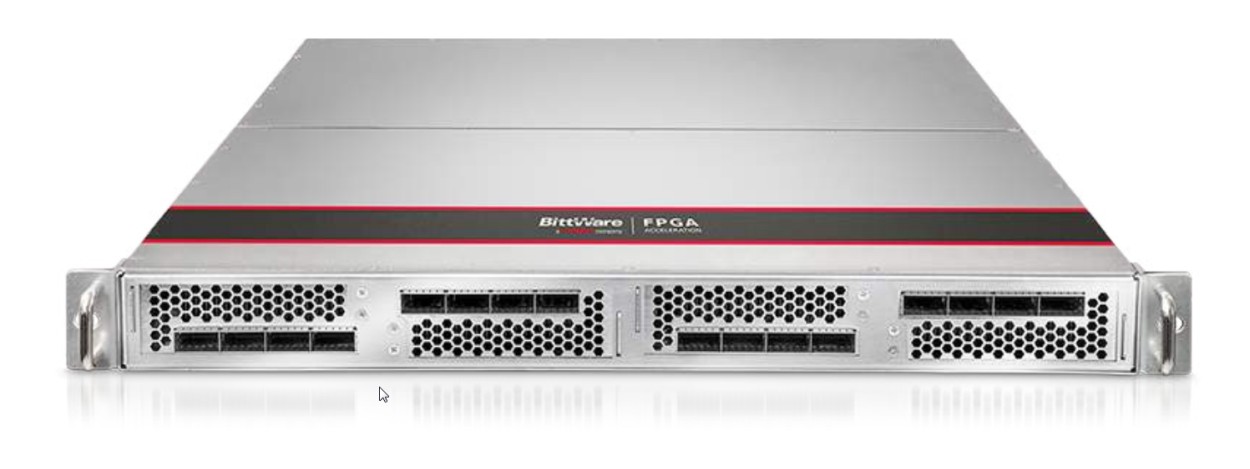

• Up to 16 QSFP-DDs for 32× 100 G or 128× 10/25G

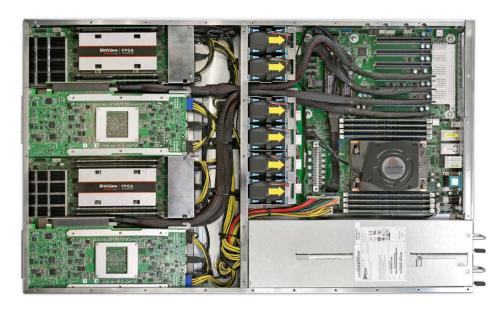

• up to 4 FPGAs in a standard-depth 1U server
• Support for BittWare’s full range of FPGA cards
• Ethernet: 2x RJ45 10G base-T by Intel® X550-AT2, 1x RJ45 Dedicated IPMI LAN port by RTL8211E
• Memory: 8x DDR4 DIMMs
• Storage: 2x M.2 drives, 4x Removable U.2 NVMe drives
• Slots: 4x front panel PCIe Gen4 x16;
• 1x rear panel low-profile Gen4 x16 NIC slot
• Power supply: 1+1 AC 1300W, 110/220V

The TeraBox 1401B/1402B and 1411B/1412B are ready for Gen4-equipped cards with twice the bandwidth per lane of Gen3.

BittWare FPGA Cards

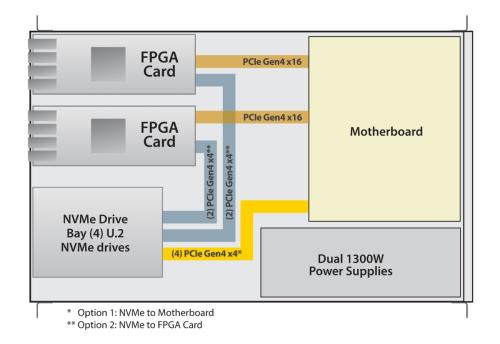

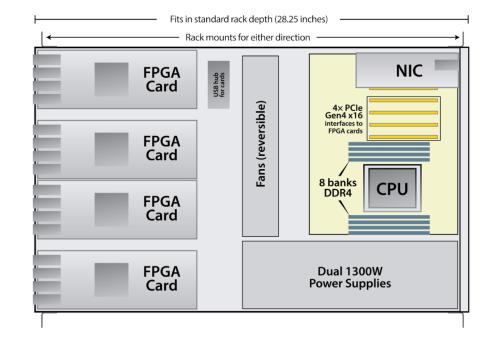

The TeraBox 1401B/1402B support up to four dual-slot BittWare PCIe FPGA cards, and the TeraBox 1411B/1412B support two. Choose from a variety of cards based on the Speedster 7t, Stratix 10, or UltraScale+ FPGAs. System specs will vary greatly, depending on the FPGA card you select. For example, with four BittWare UltraScale+ PCIe cards, which support up to 512 Gbytes of DDR4 per card, the chassis can support as much as 2 Terabytes of DDR4 on the FPGA cards in 16 banks. With four Agilex cards using breakout cables, each chassis supports 48x 100GbE.

BittWare 1U Server

The TeraBox 1400B family servers are exclusive to BittWare and are the ideal platform to unleash the energy-efficient acceleration of BittWare’s FPGA cards. This FPGA-optimized 1U server delivers unrivaled performance density and value for a range of compute-intensive applications, including machine learning.

The TeraBox Advantage

Choosing a TeraBox FPGA server means knowing you are getting a pre-configured and tested solution. This includes setup and installation of your FPGA cards and associated hardware, your choice of operating system, and development tools. Your TeraBox arrives ready for use—giving your team more time for development and deployment.6 QSFP-DDs for 12x 100G or 48x 10/25G
