Gidel FPGA IP Core for Real-time Lossless Compression | Bayer, Monochrome, RGB

Gidel’s lossless compression FPGA IP Core is real-time compression for Color Filter Arrays such as Bayer, Monochrome, and RGB images and videos.

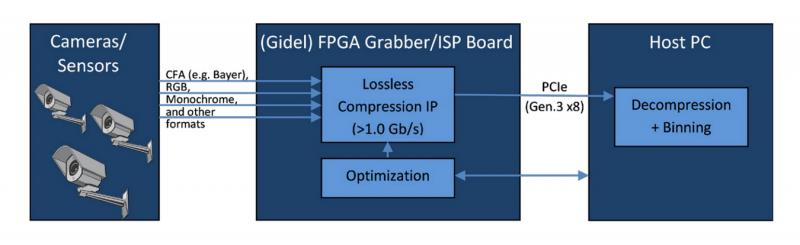

The IP enables compression of multiple cameras or sensors at pixel clock rates exceeding 1 Giga pixels, while using very small FPGA resources and minimal power consumption. The compression is highly efficient, and has demonstrated video applications achieving a lossless compression ratio of 1:2.3.

Compression Performance Example

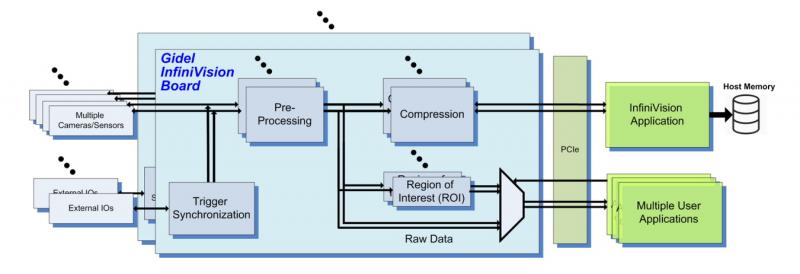

The IP is supported by Gidel’s comprehensive ecosystem that allows tailoring of optimized solutions that may include image processing, vision algorithms, and a concurrent recording system. The recording system may also be complemented by Gidel’s CamSim playback system.

There are two compression modes:

1. Compression of individual image frames.
2. Compression of video using I and P frames.

The compression can be optimized either by pre-training based on sample images data, or by on-the-fly training based on real-time data.

The IP is supported by a decompression software enabling:

• Full streaming rate with a latency of less than a single frame period.
• Binning option to reduce image size and processing time. This feature, for example, can be used for displaying videos from multi cameras during a recording session.

Product Data

• Specifications: Gidel Real-time Lossless Compression For Bayer, Monochrome, RGB and more
