EDT PCIe8 CML-ECL | Xilinx Kintex 7 | CML and ECL | Fast DMA | Synchronous IO

The PCIe8 CML-ECL is a PCI Express 8-lane interface that enables fast DMA and synchronous I/O to transfer CML and ECL data between an external device and a host computer. 8 bidirectional channels are supported; four CML and four ECL.

The PCIe8 CML-ECL provides one Xilinx Kintex 7 FPGA (XC7K160T) which combines PCIe functionality (for DMA) and UI functionality (for I/O). The buffers are integrated FIFOs for input and output.

Observed data rates on the I/O connector are up to 1300 Mbits per second for the CML channels and up to 1400 Mbits per second on the ECL channels.

The hardware protocol is synchronous: all data and control signals are sampled by a clock transmitted along with them. This sample clock can be generated by the DMA interface, the user device, or both.

Engineering Design Team provides FPGA configuration files supporting standard operations. Custom configuration files can be requested.

Product Data

Specifications: EDT PCIe8 CML-ECL. PCIe 8-lane interface for configurable DMA of 4 CML and 4 ECL I/O channels

Please use our FPGA Board Selector to find your preferred model.

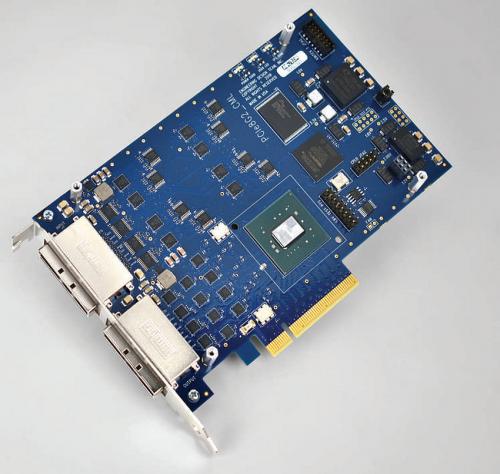

EDT PCIe8 CML-ECL PCI Express 8-lane FPGA with 1x Xilinx Kintex 7 FPGA XC7K160T by Engineering Design Team. — EDT PCIe8 CML-ECL FPGA board with 1x Xilinx Kintex 7 FPGA (XC7K160T).
