BittWare 250-M2D | Computational Storage Processor (CSP) | M.2 Accelerator Module | Glacier Point carrier cards in Yosemite servers | Hyperscale and Machine Learning

The BittWare 250-M2D is an FPGA-based Computational Storage Processor (CSP) designed to meet the draft M.2 Accelerator Module Hardware Specification standard. It is intended to operate in Glacier Point carrier cards for Yosemite servers. These feature-rich, dense servers are favored by hyperscale and cloud companies striving to improve the performance density and energy-efficiency of machine learning platforms.

The 250-M2D product features a Xilinx Kintex® UltraScale+ FPGA directly coupled to two banks of local DDR4 memory. Customers can either develop their own acceleration applications in HDL, or take advantage of pre-programmed accelerator solutions featuring IP from BittWare partner companies.

Features

Ideal for Computational Storage
KU3P FPGA: 356K LCs Kintex UltraScale+
Up to 32 GBytes DDR4
The 250-M2D is available pre-configured with compute and storage IP from our solutions partners Myrtle.ai and Eideticom

Specifications

FPGA Xilinx Kintex UltraScale+ KU3P in an B784 package
Core speed grade - 2
On-board DDR4 SDRAM
Two banks of DDR4 SDRAM x 32 bits
8GB bank (16GB version also available)
Transfer Rate: up to 2400 MT/s
Host interface: M.2 interface supporting Gen3 x4 PCIe
Cooling: Passive heatsink
Electrical: Hot swapping tolerant, power dissipation is application dependent
TDP: 14.85W max
Module Absolute Peak Power (20us): 24W
Environmental: Operating temperature: 5°C to 50°C at module inlet
Cooling: air convection
Quality: Manufactured to IPC JSTD-001 -Class 2, RoHS compliant
Form factor: M.2 Accelerator Module Hardware Specification (not designed for standard M.2)
BIST - Built-In Self-Test for CentOS 7 provided with source code (pinout, gateware, PCIe driver and host test application)
Xilinx Tools - Vivado Design Suite HLx Editions: HDL and C/C++ with HLS
PCIe carrier card allowing 250-M2D to be populated in a standard PCIe slot for lab development

Product Data

Specifications: BittWare 250-M2D. M.2 Accelerator Module with Xilinx UltraScale+ FPGA

Please use our FPGA Board Selector to find your preferred model.

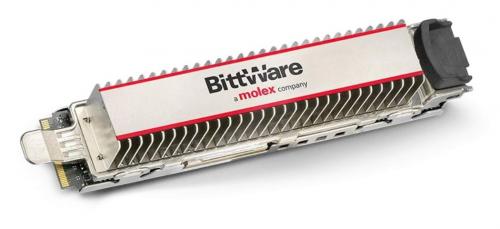

BittWare 250-M2D FPGA-based Computational Storage Processor with up to 32 GBytes DDR4 and KU3P FPGA:356K LCs Kintex UltraScale. — BittWare 250-M2D FPGA-based Computational Storage Processor with up to 32 GBytes DDR4.

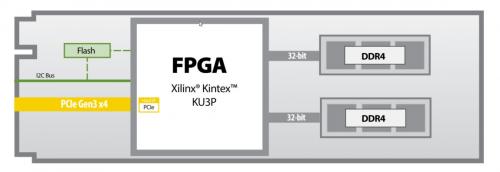

BittWare 250-M2D M.2 Accelerator Module Beschleunigerdiagramm mit Hardwarekomponenten. — Hardwarebeschleunigungsdiagramm: 250-M2D M.2 Accelerator Module.
