BittWare AMC-420 FPGA Processing AMC Module

The BittWare AMC-420 conforms to the AMC, AdvancedTCA, MicroTCA formats and has an FMC Site. Powered by a Xilinx Virtex-6 LX240T FPGA, or SX315T as an option. Memory is 36 MB QDR-II+ SRAM and 1 GB DDR3 SDRAM. Compatible with AMC.1 PCI Express – ports 4 through 11 have x4 PCIe Gen 2. Ports 0 through 1 have AMC.2 1 GB Ethernet.

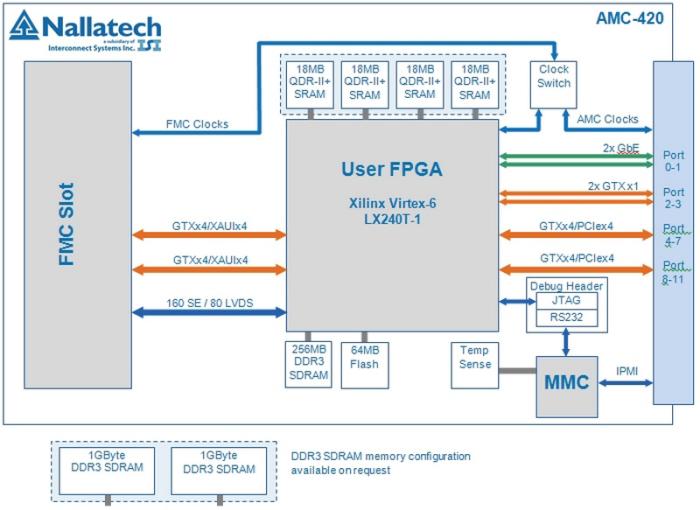

BittWare AMC-420 with Xilinx Virtex-6 LX240T FPGA Hardware Processing AMC Module Diagram describing board components operations and specs. — Hardware accelerator diagram: BittWare AMC-420 with Xilinx Virtex-6 LX240T FPGA Processing AMC Module.

Product Data

Product Overview: AMC-420 FPGA Processing AMC Module with FMC Site

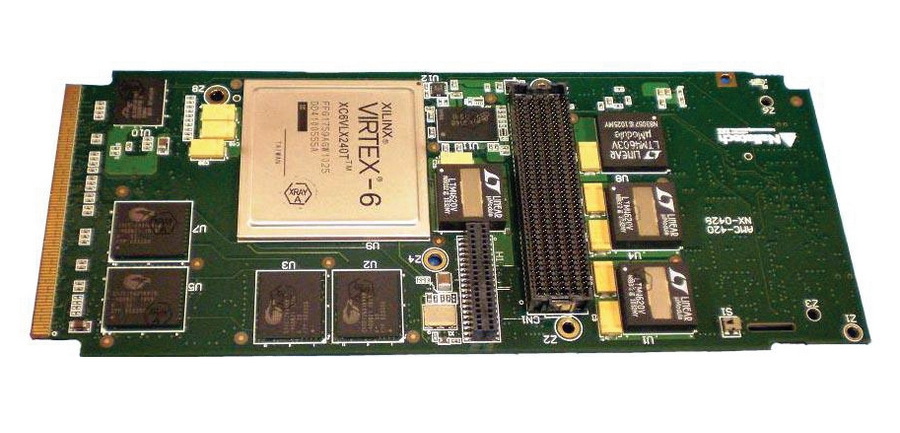

PCIe BittWare AMC-420 with Xilinx Virtex-6 LX240T FPGA Network Processing Card supporting 32 GB QDR-II+ SRAM or 1 GB DDR3 SDRAM. — BittWare AMC-420 with Xilinx Virtex-6 LX240T FPGA Processing AMC Module: PCI Express board with QDR-II+ SRAM and DDR3 SDRAM.
