BittWare TeraBox 2000H | 3x FPGAs | ProLiant DL385 Gen10 | 2x AMD EPYC

The BittWare TeraBox 2000H integrates one of the world’s highest performance servers from HPE with the latest generation of BittWare FPGA accelerators to help customers address the most demanding data center applications.

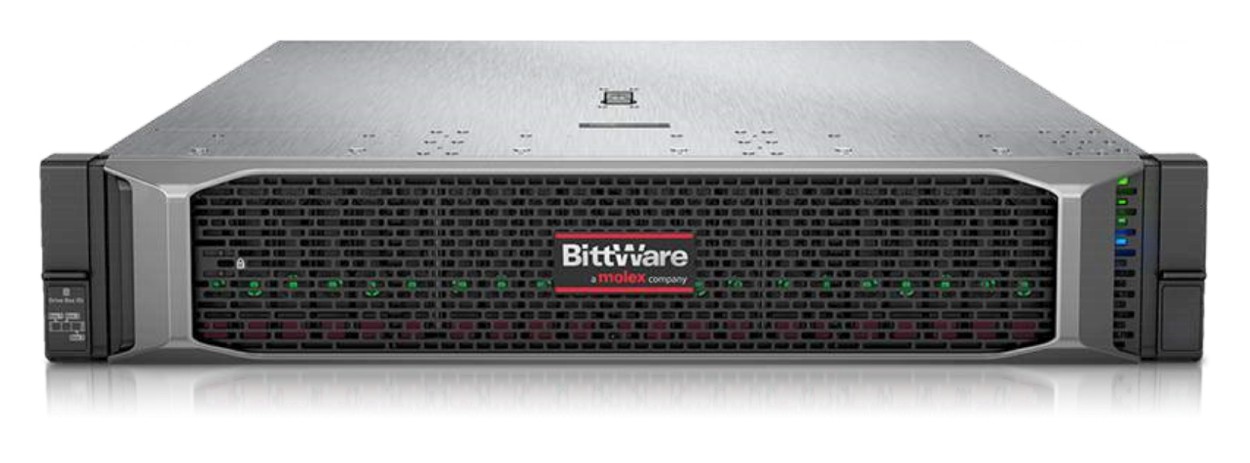

The TeraBox™ 2000H is a 2U rack mount server based on the HPE ProLiant DL385 Gen10. It combines two AMD EPYC processors with up to three full-size PCIe BittWare accelerators featuring the latest FPGAs from Achronix, Intel and Xilinx.

This FPGA server supports up to 12 QSFPs for 24x 100G or 96x 10/25G in a 2U rackmount server and support for BittWare ’s full range of FPGA accelerator boards.

CHASSIS SPECS

2U, depth 28.7 in (73cm)
Processor: 2 AMD EPYC 7xx2 Series Processors
Memory: 32x ECC DDR4-2666 DIMMs
Slots: 3 DW/FH/FL Gen 3 x16 PCIe slots
Storage: 2 1.6TB SAS SSD drives
Power supply: Platinum up to 1600W, redundant (1+1)

System Management

For system management, BittWare ’s FPGA cards are equipped with a Board Management Controller (BMC), which accepts IPMI 2.0 commands. Use it along with BittWare ’s BittWorks II Toolkit to program the FPGA over USB, monitor card power and temperature, and re-program the onboard clocks. You’ll also be able to set points to shut down the card when it gets too hot, access JTAG, or access the software tools remotely.

The TeraBox Advantage

Choosing a TeraBox FPGA server means knowing you are getting a pre-configured and tested solution. This includes setup and installation of your FPGA cards and associated hardware, your choice of operating system, and development tools. Your TeraBox arrives ready for use—giving your team more time for development and deployment.

The TeraBox 2000H supports many of BittWare ’s Achronix, Intel, or Xilinx FPGA-based PCIe cards:

TeraBox 2000H Server Configurations

Low

2x AMD EPYC 7262 processors
64GB DDR4 Memory
2x 1.6TB SSD SAS
1+1 1600W Power Supplies

Medium

2x AMD EPYC 7302 processors
128GB DDR4
2x 1.6TB SSD SAS
1+1 1600W Power Supplies

High

2x AMD EPYC 7542 processors
256GB DDR4
2x 1.6TB SSD SAS
1+1 1600W Power Supplies

Ultra

2x AMD EPYC 7742 processors
512GB DDR4
2x 1.6TB SSD SAS
1+1 1600W Power Supplies

Product Data

Specifications: BittWare TeraBox 2000H. 2U FPGA Server. Integrated into HPE ProLiant DL385 with AMD

Please use our Server Selector to find your preferred model.

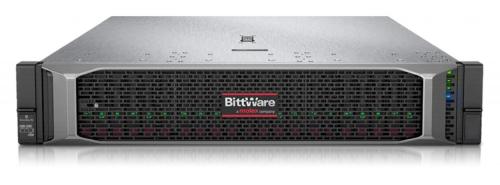

BittWare TeraBox 2000H 2U FPGA Server with up to three full-size PCIe BittWare accelerators featuring Achronix, Intel and Xilinx and supports Up to 12 QSFPs for 24x 100G or 96x 10/25G. — BittWare TeraBox 2000H 2U FPGA Server with up to three full-size PCIe BittWare accelerators featuring Achronix, Intel and Xilinx.

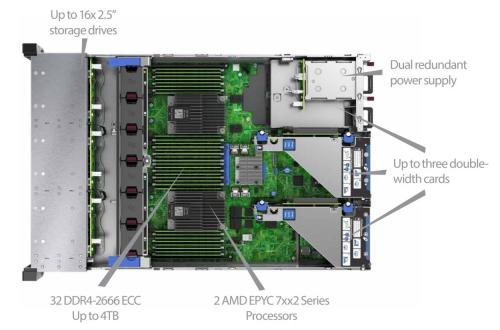

BittWare TeraBox 2000H is based on the HPE ProLiant DL385 Gen10 - key features — BittWare TeraBox 2000H 2U rack mount server based on the HPE ProLiant DL385 Gen10: key features.
