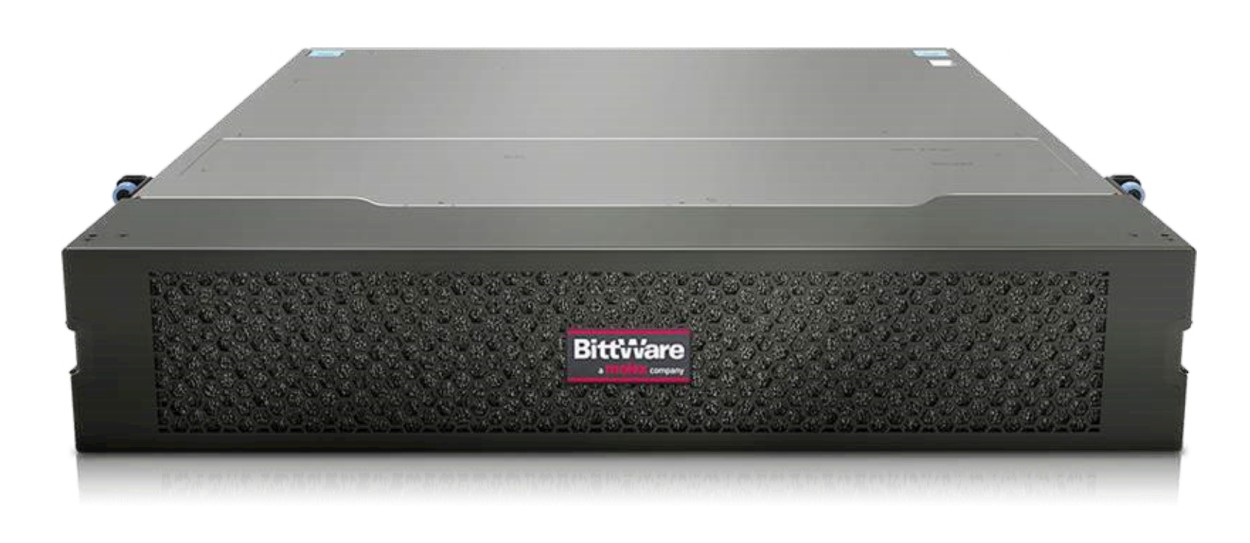

BittWare TeraBox 200DE | 2x FPGAs | 2U/2S Short-Depth Server | DELL PowerEdge™ XE2420 | Harsh Environments

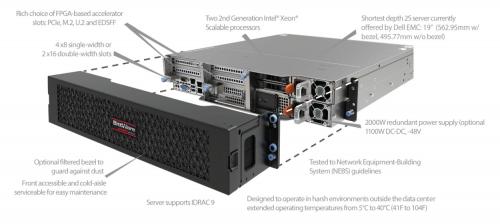

The Terabox 200DE enables world-class FPGA acceleration to be deployed in the more challenging, harsh environments demanded of edge applications with an extended temperature range of 5C to 40C. The 200DE is NEBS compliant, 2U short-depth server with an extended operating temperature range based on the new DELL PowerEdge™ XE2420. It can be populated with a range of BittWare accelerator products featuring the latest FPGAs from Achronix, Intel and Xilinx to support the increasingly complex demands of highly specialized workloads.

System Management

For system management, BittWare ’s FPGA cards are equipped with a Board Management Controller (BMC), which accepts IPMI 2.0 commands. Use it along with BittWare ’s BittWorks II Toolkit to program the FPGA over USB, monitor card power and temperature, and re-program the onboard clocks. You’ll also be able to set points to shut down the card when it gets too hot, access JTAG, or access the software tools remotely.

The TeraBox Advantage

Choosing a TeraBox FPGA server means knowing you are getting a pre-configured and tested solution. This includes setup and installation of your FPGA cards and associated hardware, your choice of operating system, and development tools. Your TeraBox arrives ready for use—giving your team more time for development and deployment.

The TeraBox 200DE supports many of BittWare ’s Achronix, Intel and Xilinx FPGA-based PCIe cards, including:

• S7t-VG6 Speedster7t
• 520N-MX Stratix 10 MX
• XUP-P3R UltraScale+ VU9P

Additional expansion capabilities are available via M.2, U.2, and ESDFF.

Server Configurations

Low

• 48GB DDR4
• 2x 960GB SSD
• 2x Xeon Silver 4216 Processors

Medium

• 96GB DDR4
• 2x 960GB SSD
• 2x Xeon Gold 6234 Processors

High

• 192GB DDR4
• 2x 960GB SSD
• 2x Xeon Gold 6252 Processors

Product Data

• Specifications: BittWare TeraBox 200DE. 2U Short-Depth Edge FPGA Server. Ideal for harsh environments
