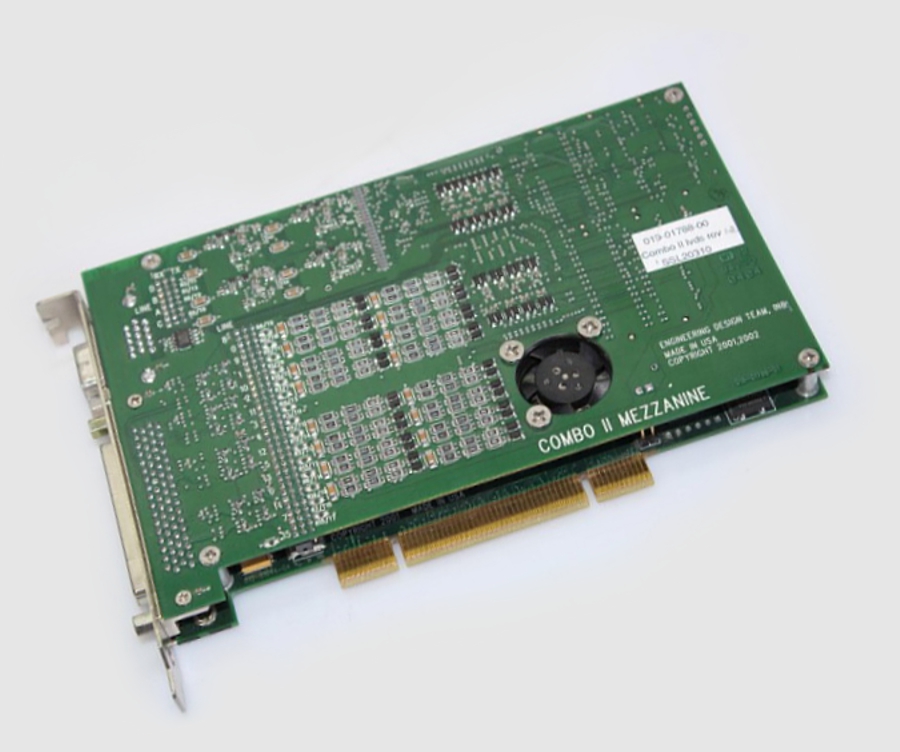

EDT Combo 2 Mezzanine Board with E1/T1, E3/T3, LVDS or RS-422 interface

The EDT Combo 2 is a mezzanine board that pairs with a PCI/e main board for complex user-defined applications such as telecommunications network monitoring or telecommunications switching. The board pair transfers serial telecom or LVDS / RS-422 data at high speed via a 66 MHz 32-bit PCI. Versatile access to host memory is via the fast DMA controller. Sixteen independent DMA-to-host channels, two large synchronous static memory banks or one memory bank up to 1 GB memory, and Xilinx FPGA are provided by the main board. FPGA configuration files are available. The EDT Combo2 interface card has sixteen E1/T1 line interfaces, four E3/T3 line interfaces, and sixteen LVDS (TIA644 standard) or RS-422 differential inputs / output (input or output in groups of four). Output data is synchronized by an external LVDS clock.

Product Data

• Specifications: EDT Combo 2 Mezzanine Board – 16x E1/T1, 4x E3/T3, 16x LVDS (TIA644 standard) or RS422
• User Guide: Combo, Combo 2, or Combo 3 Mezzanine Board Interface for multiple signal types for use with an EDT main board
• Main Board User Guide: PCI / PCIe Main Board PCIe8 LX, PCI GS, or PCI SS For PCI or PCI Express systems
