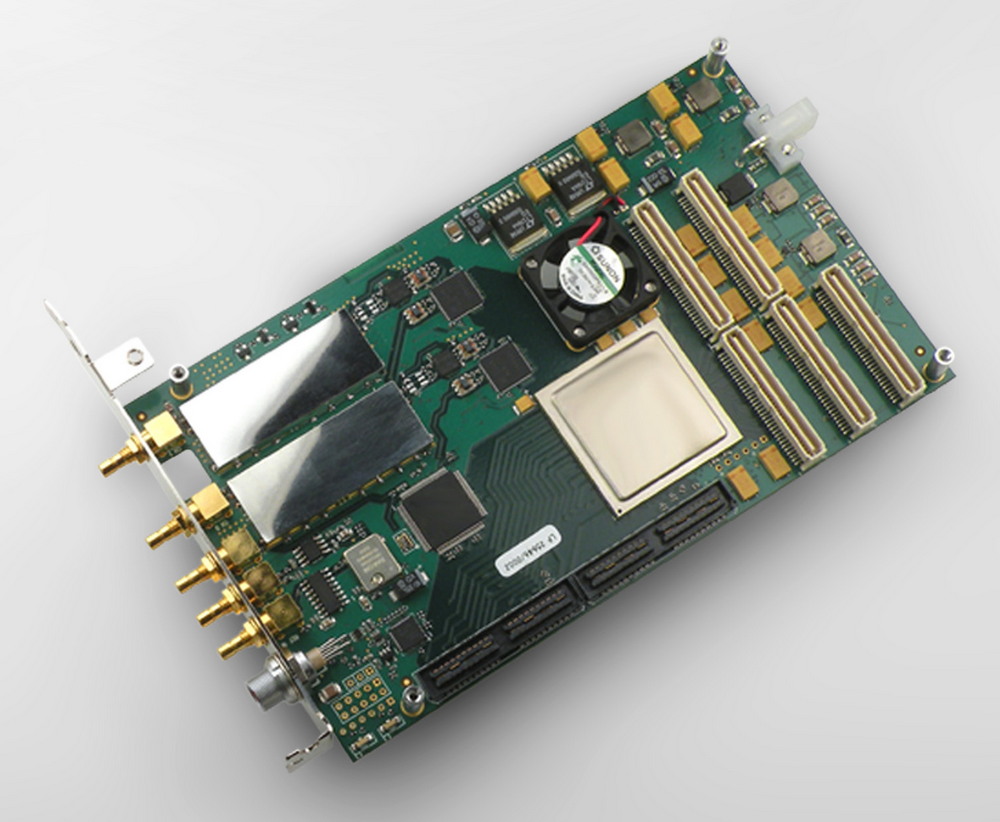

EDT DDRX16 Mezzanine board with 2x DSP digitizer via 16-bit ADCs

The EDT DRX16 is a mezzanine board that pairs with a PCI Express main board to digitize two independent IF signals via 16-bit ADCs. Its Xilinx Virtex 6 LX FPGA (XC6VLX240T) has two identical ports for 2 – 300 MHz, with independent gain and sample rate settings. EDT firmware and software captures basic signals and spectral display. Applications include high speed filtering, real time signal acquisition, analysis and test and measurement, adaptive signal processing, and wide-band software-defined radio.

Product Data

Specifications: DRX16 Dual digitizer for DSP with 16-bit ADCs
Main Board User Guide: PCI / PCIe Main Board PCIe8 LX, PCI GS, or PCI SS For PCI or PCI Express systems

DDRX16 Mezzanine board for PCI / PCIe main board equipped with Xilinx Virtex 6 LX FPGA (XC6VLX240T) with dual 2 – 300 MHz ports for DSP digitizing from EDT. — EDT DDRX16 Mezzanine board for PCI / PCIe: Xilinx Virtex 6 LX FPGA (XC6VLX240T) with dual 2 – 300 MHz ports.
