EDT MSDV Mezzanine board with Xilinx Virtex 5 FPGA

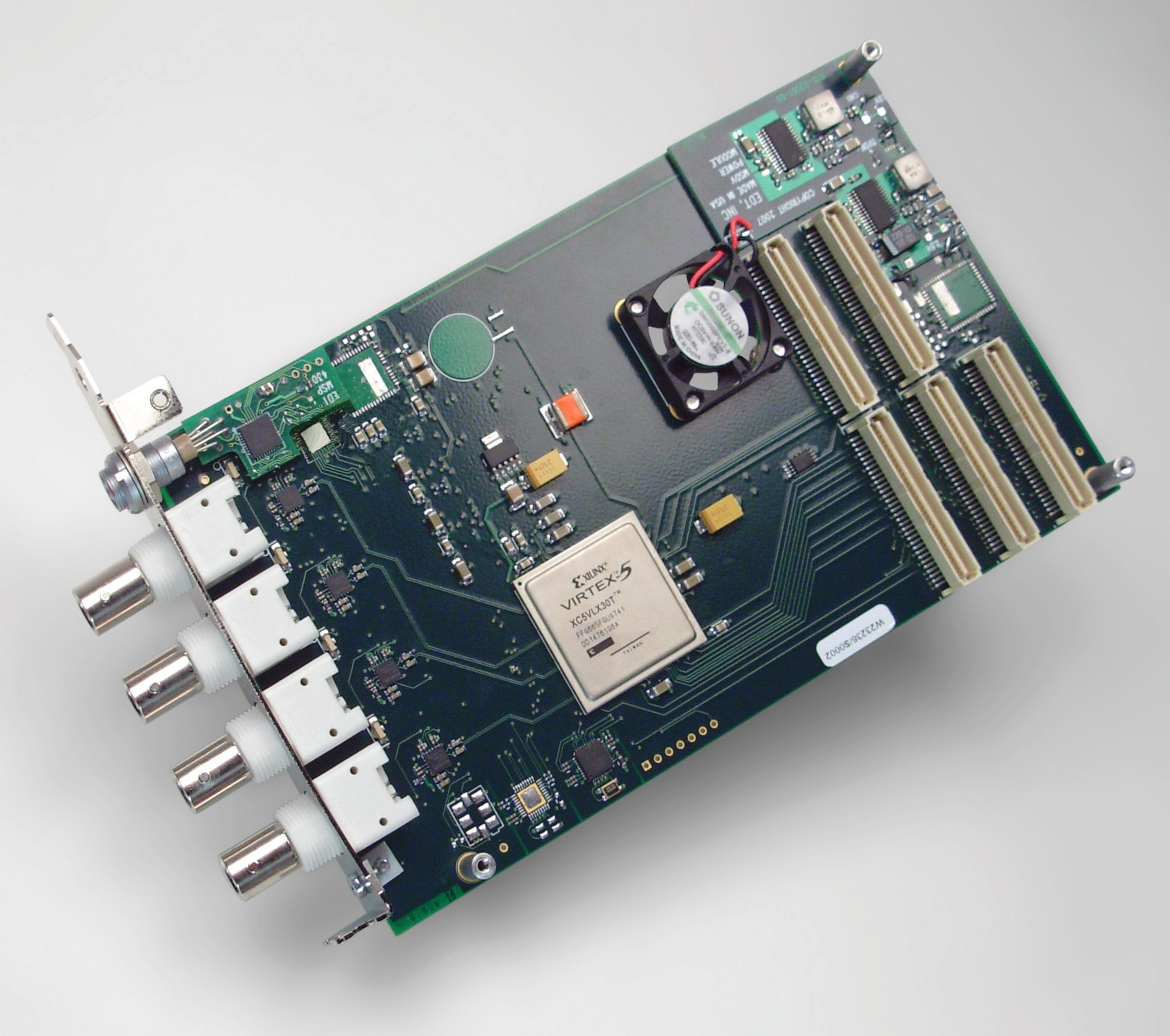

The EDT MSDV is a mezzanine board that pairs with a PCI/e main board for high speed data transfer. Four BNC connectors allow up to four serial multi-rate digital video signals per DVB-ASI/SMPTE protocol. The FPGA is Xilinx Virtex 5 with 1 pps or IRIG-B time code input for a precise time stamp.

Product Data

Specifications: MSDV Multirate serial digital video interface for DVB-ASI / SMPTE
User Guide: MSDV Multirate serial digital video. A mezzanine board for use with a main board (PCI SS, PCI GS, or PCIe8 LX)
Installation Guide: INSTALLATION GUIDE – for board-level products
Main Board User Guide: PCI / PCIe Main Board PCIe8 LX, PCI GS, or PCI SS For PCI or PCI Express systems

MSDV Mezzanine with Virtex 5 FPGA for PCI / PCIe supporting DVB-ASI / SMPTE protocol for 4x digital video signals by Engineering Design Team. — MSDV Mezzanine for PCI / PCIe main boards with Xilinx Virtex 5 FPGA: 4x serial multi-rate video signals of DVB-ASI / SMPTE protocol.

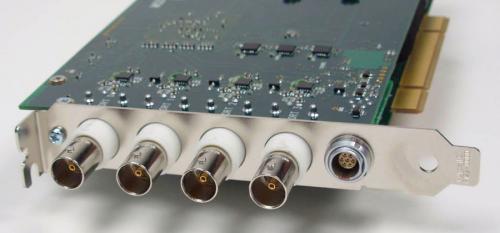

MSDV Mezzanine with Virtex 5 FPGA for PCI / PCIe equipped with 4x BNC connectors (DVB-ASI / SMPTE) and 1 pps / IRIG-B time code input by Engineering Design Team. — MSDV Mezzanine for PCI / PCIe main boards with Xilinx Virtex 5 FPGA: 4x BNC connectors and 1x 1 pps / IRIG-B time code input.
