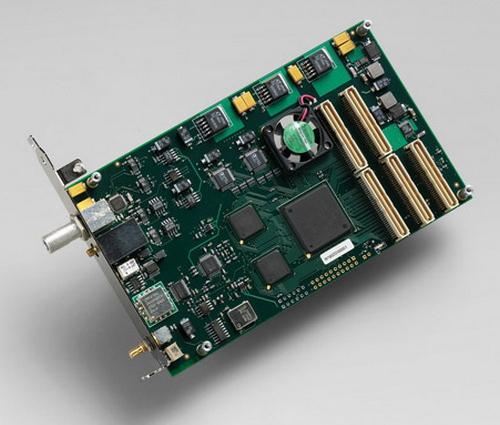

EDT SRXL Mezzanine board with IF and L-band signals

The EDT SRXL mezzanine board pairs with EDT PCI/e main boards and receives simultaneous L-band signals between 925 and 2175 MHz and IF between 65 and 225 MHz. Each input is processed with a tunable quadrature down-converter. The resulting baseband I and Q signals are low-pass filtered and digitized with 12-bit precision at programmable sample rates up to 65 MHz. The resulting four channels of digital sample data are available as inputs to the Xilinx Spartan 3 FPGA for signal processing or as a configurable switch matrix to route data to the main board and up to two 4-channel digital down-converter Graychips (GC4016).

Product Data

Specifications: SRXL Signal receiver and processor for IF and L-band
Main Board User Guide: PCI / PCIe Main Board PCIe8 LX, PCI GS, or PCI SS For PCI or PCI Express systems

SRXL Mezzanine board for PCI / PCIe supporting L-band and IF signals equipped with Xilinx Spartan 3 FPGA and Graychips (GC4016) from EDT. — SRXL Mezzanine board for PCI / PCIe: 925 – 2175 MHz L-band signals and 65 – 225 MHz IF signals with Xilinx Spartan 3 FPGA.
