Gidel RCLF remote Camera Link over Fiber Optic System | 2 km to 40 km range | Connect to another RCLF then any frame grabber | Or connect to Gidel Hawk-Eye-CL frame grabber directly

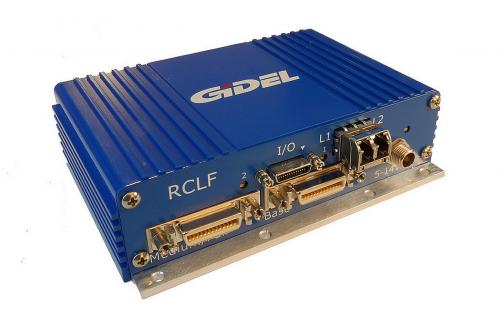

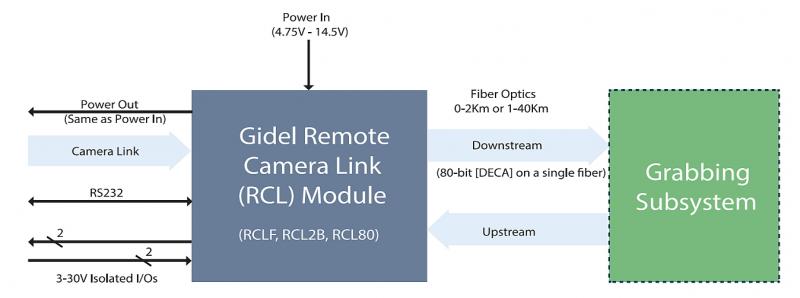

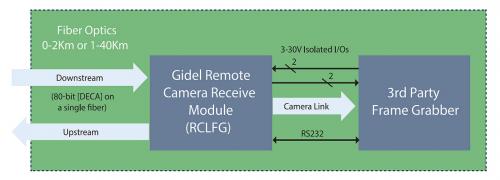

The Remote Camera Link Fiber-Optic (RCLF) extension system allows frame acquisition from a remote camera at a distance of up to 40 km without repeaters. A remote camera connects directly to the RCLF module, which transmits the camera image over fiber optic cable. On the host end, the fiber-optic cable connects to either a Gidel PCIe HawkEye-CL frame grabber board mounted in a host computer or to another Gidel RCLGR module that can interface with any user frame grabber. The RCLF supports all Camera Link modes, including 80-bit DECA, and has the option to connect two base mode cameras.

The RCLF unit is supported by remote I/O capabilities via the fiber optic cable, including:

• Camera Link camera control lines for remote control of the camera
• Camera Link serial communication
• Dedicated I/O interface for RS232 and GPIO
• 3-30V opto-coupler drivers and receivers

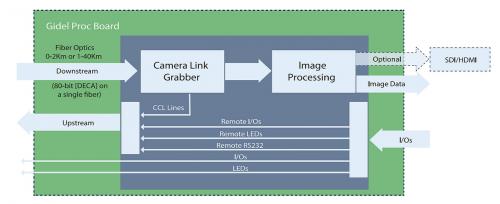

The Gidel HawkEye-CL frame grabber offers high speed image and video acquisition, on-board real-time image processing, many I/O options, and multi-camera synchronization.

Key Features of the Gidel CamSim

• Transmit distance without repeaters: 2 km. Contact us to configure distances  up to 40 km
• Support for all Camera Link modes, including 80-bit (DECA)
• Option for connecting two Camera Link cameras in base mode
• Direct connection to Gidel’s frame grabber
• SFP+ cage for up to 6.25 Gb/s full duplex data transfer over fiber optic cable
• Remote I/O capabilities, including:
  • RS232 Rx/Tx
  • 2x 3-30V opto-couplers output driver
  • 2x 3-30V opto-coupler input receivers
  • 4 Camera Control lines and serial communication in accordance with the Camera Link specification
  • Triggering capabilities from frame grabber
• I/O controls from host PC:
• Camera Link Serial communication (CLSER)
• Virtual COM for RS232 and Camera Link
• Status LEDs indicting power, link connection, transmission activity, and user defined functionality

Product Data

• Specifications: Gidel Remote Camera Link over Fiber-Optic System (RCLF)
