KAYA Instruments CoaXPress™ Range Extender over Coax, 4 Channels

CoaXPress extender over Coax by Kaya Instruments increases standard CoaXPress coaxial cable transmission length by multiples. The system ensures low jitter, high resolution, and a high quality stream. Full control of the data and handling of the camera is assured, along with full power over CoaXPress support (PoCXP). Downlink speeds are up to 6.25 Gbps and uplink is up to 20.83 Mbps per channel, with up to 4 transmission channels.

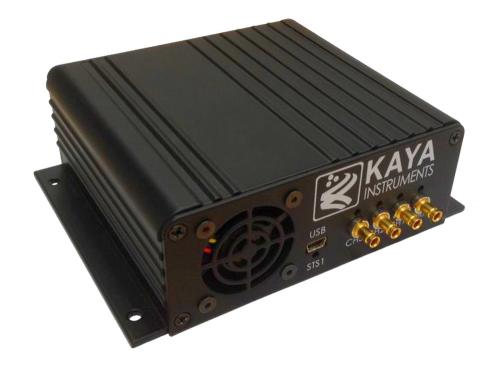

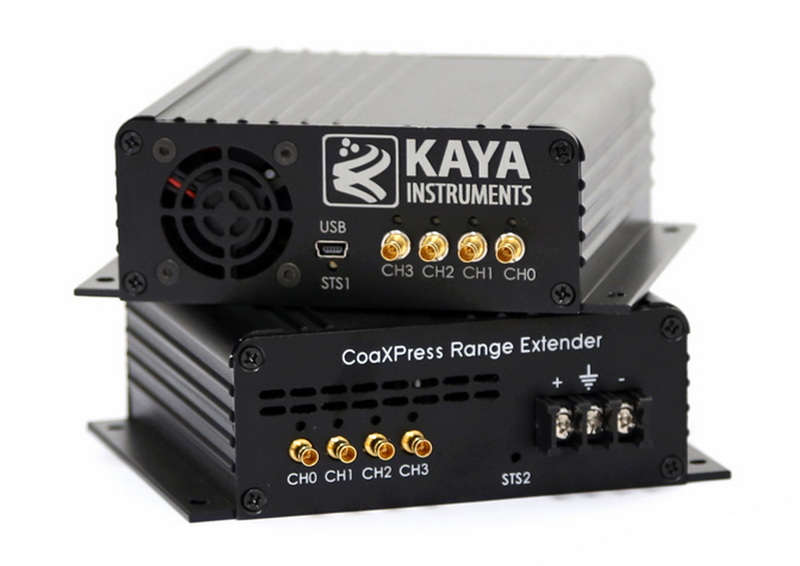

This bidirectional range extender is plug-and-play, requiring no configuration. It is compatible with Coaxpress V1.1, and supports Power over CoaXPress (PoCXP). Connectors are DIN 1.0/2.3, and a DIN rail mounting is available. Temperature operating range is industrial grade -40 °C to 70 °C. An IP66 compliant enclosure is available for this JIIA certified product. An external power supply is included, and the board is available for OEM.

Example System Block Diagram

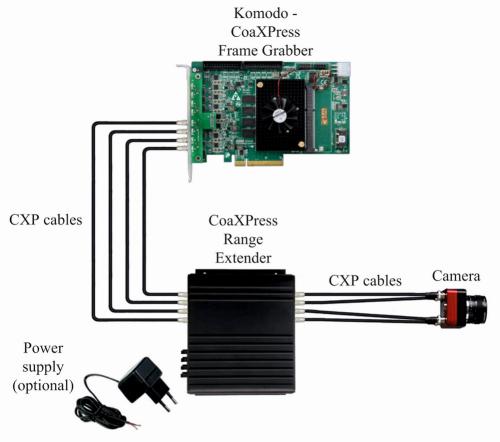

The CoaXPress Range Extender over Coax supports multiple modes of configuration and system topology. Few of these are presented in following diagrams.

Single Camera Topology

• Single, Dual or Quad CoaXPress links with up to 6.25 Gbps per link topology

Product Data

• Product Overview: CoaXPress Range Extender over Coax
• User Guide: CoaXPress™ Range Extender over Coax
