Kaya JetCam 25 – Sky Blue Microsystems GmbH

JetCam 25 – a global shutter camera with Python 25k sensor, 80 fps, and 5120×5120 resolution

The JetCam 25 with 40 Gbps fiber optic interface (25 Gbps CoaXPress) by Kaya Instruments is a global shutter camera with a Fiber or CoaXPress interface. Capture is up to 80 fps, and resolution is 25 megapixel 5120 × 5120. This camera has a global shutter sensor 4.5 μm CMOS Python 25k. Lens control is direct and needs no external unit. Excellent for limited space due to small form factor and low power demand. A monitor can be connected as a view finder or to help installation via 3G SDI output. Cable length up to 10 km. The system is customizable to user specification and is compatible with Kaya Komodo frame grabbers and the Vision Point SDK. Mounts are Nikon F and B4 2/3”, both with integrated lens control.

Waveform of the Kaya Instruments JetCam 25 shutter camera showing quantum efficiency of a CMOS Python 25k sensor in Mono and Color modes.
Waveform of the Kaya Instruments JetCam 25 camera: quantum efficiency of a Python 25k sensor in Mono and Color modes.
Waveform of the Kaya Instruments JetCam 25 shutter camera showing quantum efficiency of a CMOS Python 25k sensor in Standard and NIR Mono modes.
Waveform of the Kaya Instruments JetCam 25 camera: quantum efficiency of a Python 25k sensor in Standard and NIR Mono modes.

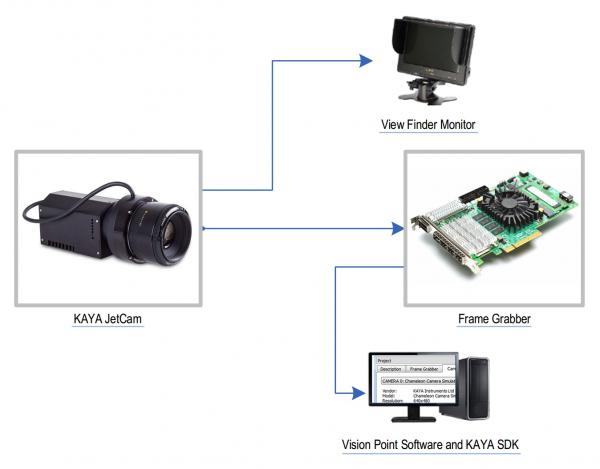

Workflow of the Kaya Instruments JetCam 25 shutter camera showing interaction among JetCam 25, view finder monitor, frame grabber, vision point driver and SDK.
Kaya Instruments JetCam 25 camera workflow: JetCam 25 / View finder monitor / Frame grabber / Vision point driver and SDK.

Product Data

Please use our Camera Selector to find your preferred model.

Kaya Instruments JetCam 25 camera fits to F-Mount, B4, C-mount, Canon EF-mount, Birger EF-mount, PL mount
JetCam 25 camera: F-Mount, B4, C-mount, Canon EF-mount, Birger EF-mount, PL mount.
Kaya Instruments JetCam 25 shutter camera supporting Nikon, Fujinon, and RS232-RS485 custom lens control.
JetCam 25 camera: Nikon ,Fujinon lens control and custom lens control through RS232/RS485.
Kaya Instruments JetCam 25 shutter camera has Birger lens control.
JetCam 25 camera: Birger lens control.
Kaya Instruments JetCam 25 camera with integrated Birger lens control via B4 2/3" mount plus Canon lens.
JetCam 25 camera: integrated Birger lens control with Canon lens.
Kaya Instruments JetCam 25 – 25 MP sensor with 4.5µm pixel size.
JetCam 25 camera with 25 MP sensor and 4.5 µm pixel size.
Kaya Instruments JetCam 25 – APS−H format camera.
JetCam 25 APS−H format camera.
Kaya Instruments JetCam 25 with 40 Gbps Quad SFP plus interface.
JetCam 25 with 40 Gbps Quad SFP+ interface.
