Kaya Instruments “Predator I / II“ CoaXPress Frame Grabber | 2CH 12G CXP2 / 2CH 6G CXP1

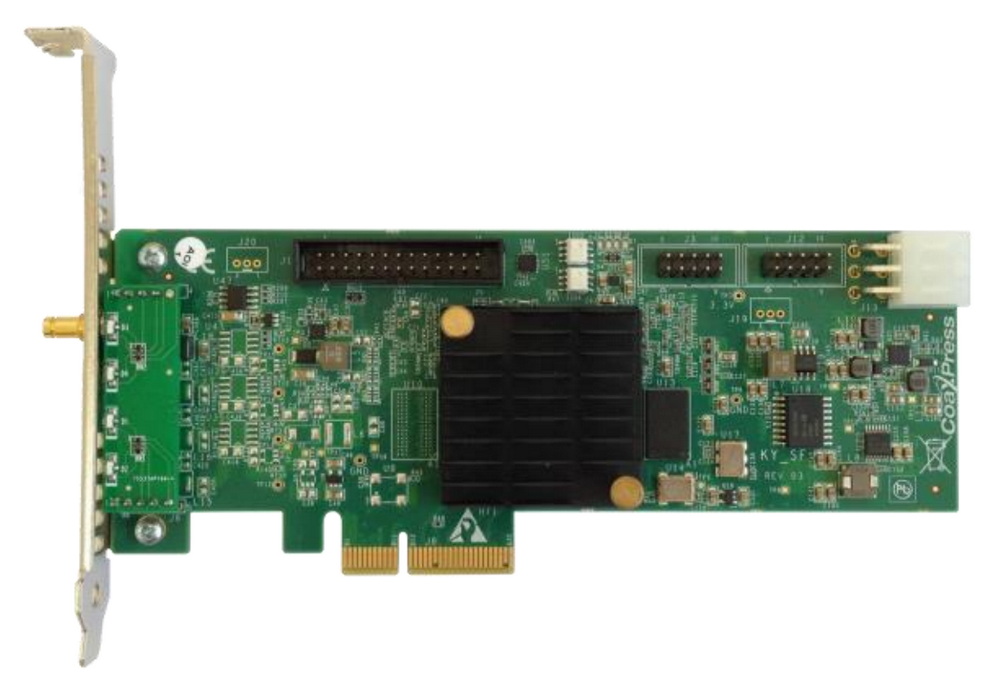

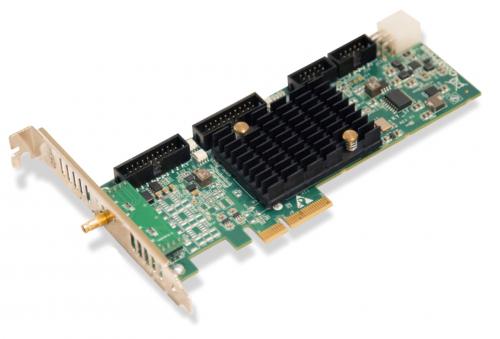

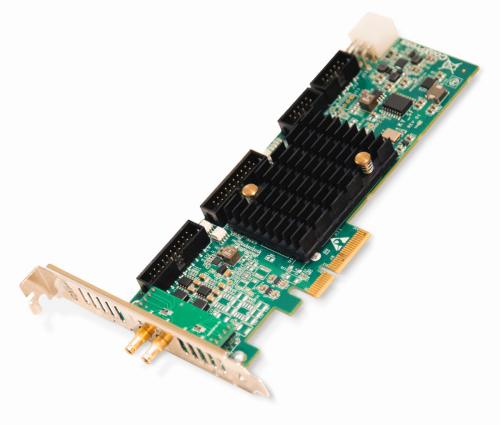

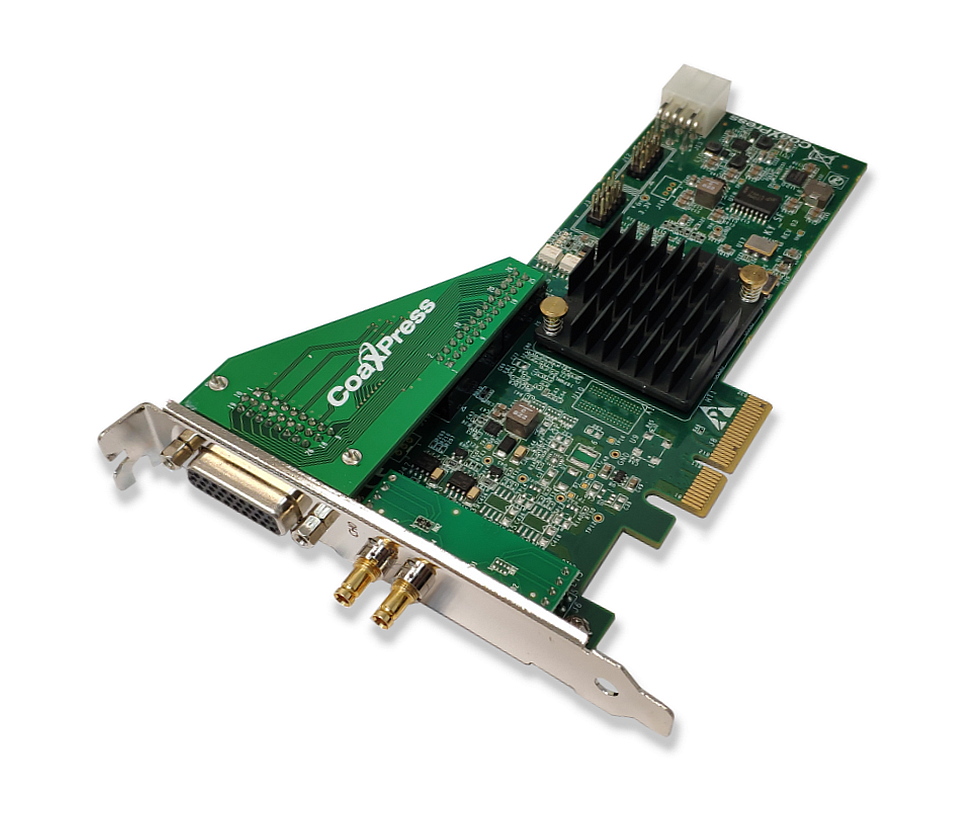

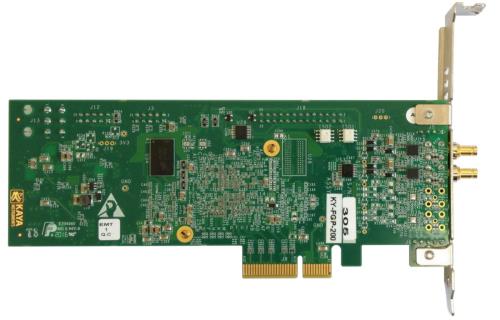

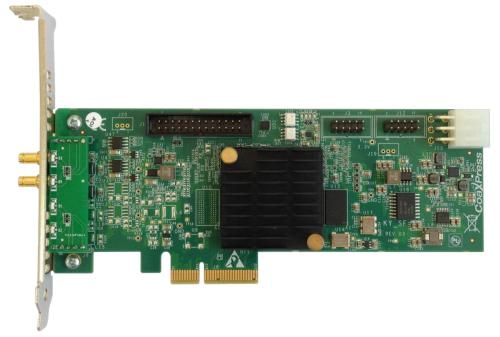

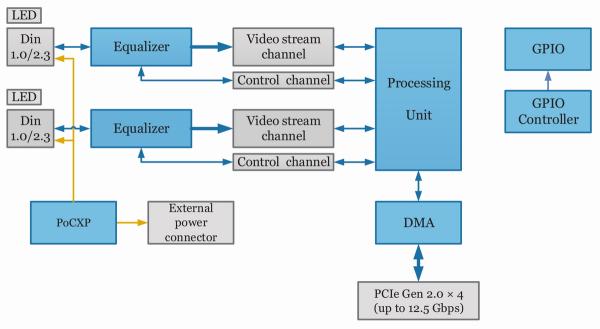

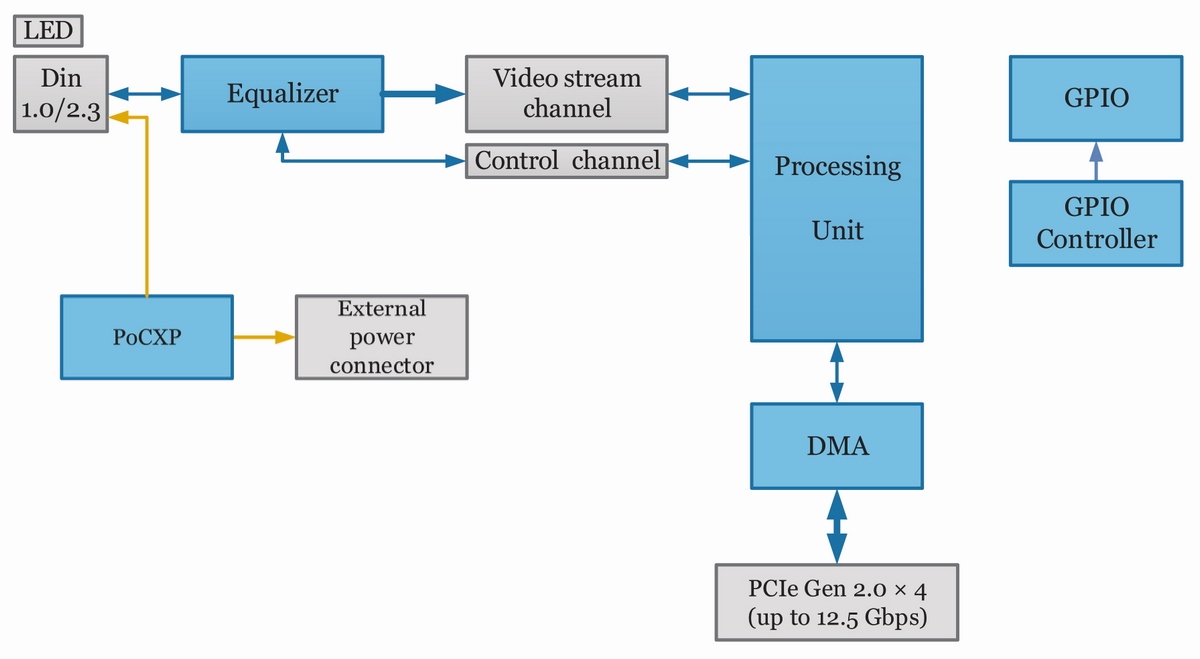

The Predator 2CH CoaXPress™ Frame Grabber can receive a video stream from one or two CoaXPress links in single or dual modes. It captures up to 2 single link cameras simultaneously, or one dual link camera. Each link handles standard CoaXPress bitrates up to 6.25 Gbps. Video streams can be linked and transmitted to computer memory through the PCIe interface. GPIO is included for machine control signals, such as triggers, shaft encoders, exposure control and general I/O which can be controlled separately from video stream acquisition. Connectors are DIN for CoaXPress to the camera, and standard 100 mm headers for general purpose I/O. Upload videos to a computer is via PCIeG3 2 lane.

In summary, the 2 channel KY-FGP Predator CoaXpress frame grabber features up to 2 6.25 Gbps channels, PCIe Gen2 x 4 interface with up to 6.25 Gbps throughput, 16 Gbps DDR3 memory, PoCXP support on all channels, and flexible GPIO interface.

The Predator CoaXpress with 2x 6.25 Gbps channels supports multiple modes of configuration and system topology. Few of these are presented in following diagrams.

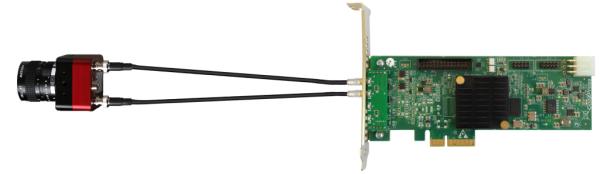

Single Camera Topology for 2 channel Predator CoaXpress frame grabbers

• Single or Dual CoaXPress links with up to 6.25 Gb per link topology
• Maximum throughput to PCIe of 12.5 Gb/sec

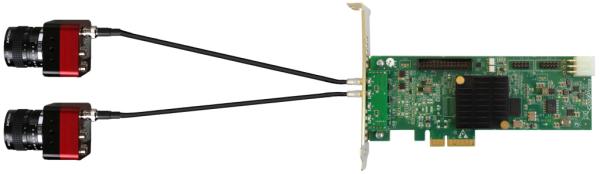

Dual Camera Topology for 2 channel Predator CoaXpress frame grabbers

• Two Single CoaXPress links with up to 6.25 Gb per link topology
• Maximum throughput to PCIe of 12.5 Gb/sec

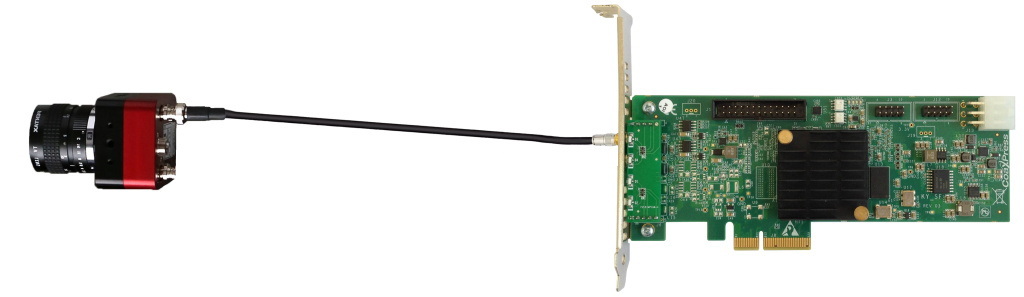

Single Camera Topology for 1 channel Predator CoaXpress frame grabber

• Single CoaXPress links with up to 6.25 Gb per link topology
• Maximum throughput to PCIe of 12.5 Gb/sec

Order options

• KY-FGP-100 – Kaya Predator single 6.25 Gbps channel CXP and PCIe2g4
• KY-FGP-100/200 – Kaya Predator with 2x 6.25 Gbps channels and 12.5 Gbps PCIeG3 2 lane
• KY-FGP-200 – Kaya Predator with 2x 6.25 Gbps channels and 12.5 Gbps PCIeG3 2 lane

Product Data

• Specifications: Kaya Predator Frame Grabber. KY-FGP-100. Datasheet
• Specifications: Kaya Predator Frame Grabber with 2 channels. KY-FGP-200. Datasheet
• Hardware Reference and Installation Guide: Kaya Predator CoaXPress Frame Grabber. (Part-No. KY-FGP-200)
• User Guide: Kaya factory update
• Application Notes: Kaya Frame Grabbers PoCXP. AN-121501
