Rapid Charger for capacitors

The Eagle Harbor Technologies (EHT) Rapid Capacitor Charger was designed for a specific customer application to charge quickly up to 4 nF capacitors in 100 – 300 ns (depending on capacitance). The pulser was tolerant to shorts for up to 3 seconds. Rapid Capacitor Charger is a modified nanosecond pulser of 5 kW.

Continuous Operation

Output Voltage: 0 – 2 kV
Output Capacitance: 0 – 4 nF
Pulse Repetition Frequency: 0 – 100 kHz

Burst Operation

Output Voltage: 0 – 4.5 kV
Output Capacitance: 0 – 4 nF
Pulse Repetition Frequency: 0 – 500 kHz
Number of Pulses in a Burst: 0 – 125
Burst Repetition Frequency: 0 – 50 Hz

EHT rapid capacitor charger waveform showing 0.5 nF capacitor charging repeatedly to 5 kV at 100 kHz, green – load voltage, blue – load current. — Rapid capacitor charger waveform: 0.5 nF capacitor is charged repeatedly to 5 kV at 100 kHz, green – load capacitor voltage and blue – load current.

EHT rapid capacitor charger waveform showing 4 nF capacitor charging repeatedly to 5 kV at 500 kHz, green plot – load voltage, blue – load current. — Rapid capacitor charger waveform: 4 nF capacitor is charged repeatedly to 5 kV at 500 kHz, green – load capacitor voltage and blue – load current.

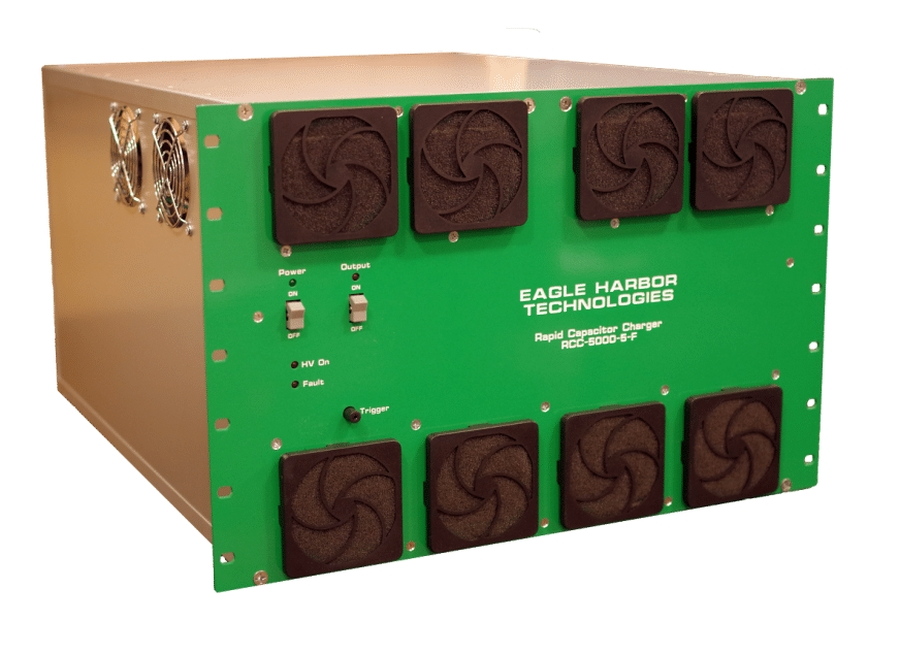

PCC-5000-5-F - Rapid Capacitor Charger by EHT wit in 100 – 300 ns charging time for up to 4 nF capacitors. — Rapid Capacitor Charger PCC-5000-5-F: up to 4 nF in 100 – 300 ns.
