Fiber receiver FR-1 (1 channel)

The FR-1 is a compact single channel fiber receiver, the reverse of the FT-1: fibre-to-BNC. This fiber interface can be used for typical laboratory control needs. FR-1 is ideally suited for applications such as scope triggering when a fiber break is required for safety or noise concerns.

Features

Single channel BNC output
Single channel 2.2 mm fiber input
DC to 50 MHz operation
3 ns typical rise and fall times
Sub nanosecond jitter
< 20 ns propagation delay
50 Ω input impedance

EHT Fiber optic isolator waveform showing FT/FR pair rise, fall, and delay into 50 Ω with 1 m fiber length. — Fiber optic isolator waveform: FT/FR pair rise, fall, and delay into 50 Ω.

Product Data

Specifications: Fiber Receiver to BNC (FR-1)
User Guide: Fiber Receiver to BNC (FRB1). BNC to Fiber Transmitter (FTB1). Quick Start Guide

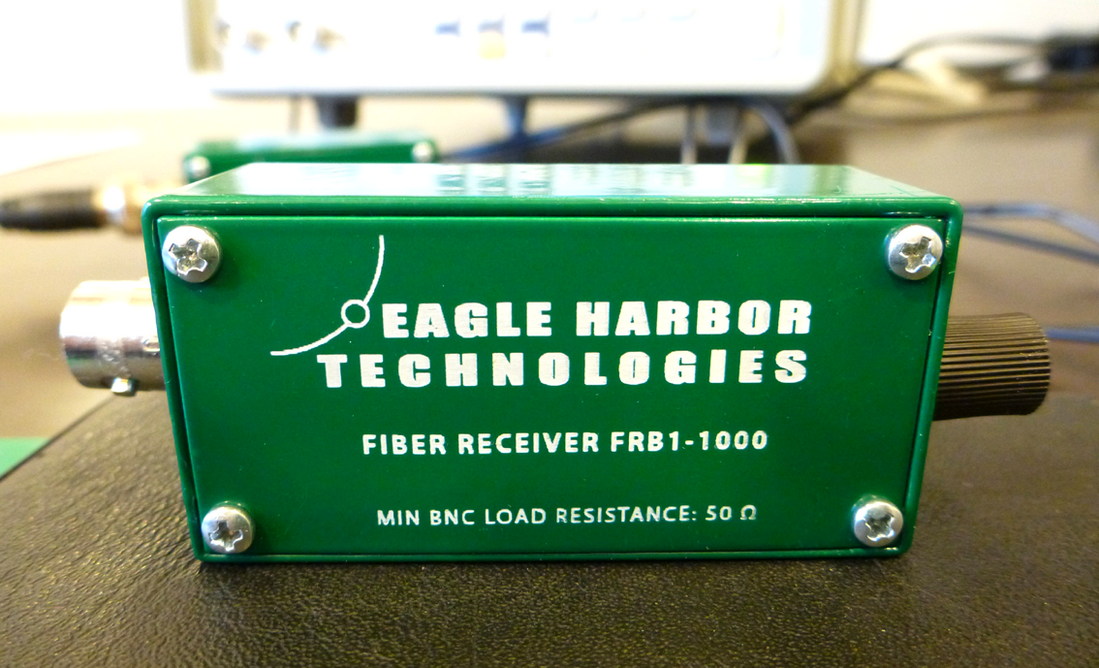

EHT FRB1-1000 Fiber receiver showing 1 channel with 3 ns typical rise / fall times and single 2.2 mm fiber input channel. — Fiber receiver FRB1-1000: 1 channel and 50 Ω minimum BNC load resistance.
