Kaya FPGA Mezzanine Cards for CoaXPress Version 2 4x 12.5 Gbps link video capture, GPIO, HPC, PoCXP
The Kaya Instruments FPGA Mezzanine Card series offers host and device link combinations as indicated by the following model numbers:
KY-FMC-II-CXP-4R FMC CoaXPress 2.0 card with 4 Receive channels (12G)
KY-FMC-II-CXP-4T FMC CoaXPress 2.0 card with 4 Transmit channels (12G)
Video can be captured by 4 channels at 12.5 Gbps each, connected to the front panel by standard Micro BNC connectors.
The links can be deployed individually, or combined across devices. For example, you could attach one link to one camera, and two links to additional cameras, totalling 5 links.
In addition to the included IP (pre-programmed routines for the FPGA), custom protocols and user-specific pre-processing can be programmed into the FPGA.
The Kaya FMC board can be used as camera simulator by emulating up to 5 transmit channels.
Each host link can carry 13 W to the devices via PoCXP (Power over CoaXPress). The interface to the host board is by high-pin count connector (HPC).
The included isolated General Purpose Input Output (GPIO) is ruggedised for harsh environments, including conduction cooling to meet industrial operating temperature ranges. It can control exposure, shaft encoders, triggers, and general IO.
Applications include industrial, defense and aerospace. Customer customisation is available. Standards compliance includes VITA 57.1, JIIA and ECT.

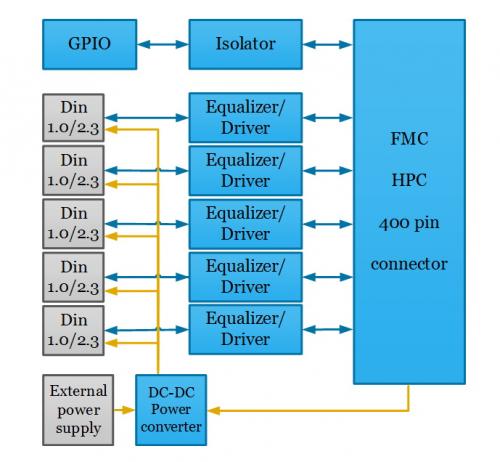

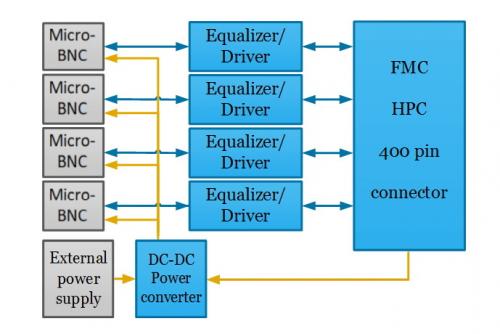

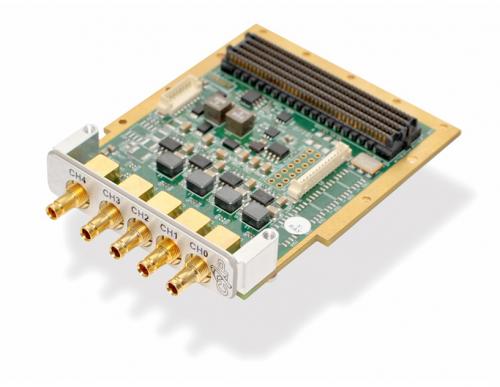

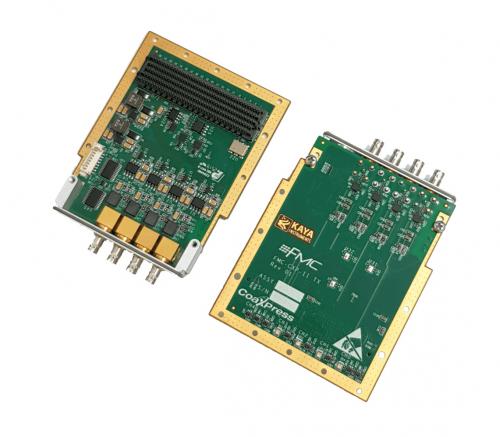

Hardware accelerator diagram for Kaya KY-FMC-CXP: 5 x DIN 1.0/2.3 connectors available from the front panel.Hardware accelerator diagram for Kaya KY-FMC-II-CXP: 4 x Micro BNC connectors available from the front panel.
