cPCI DV C-Link – EDT Camera Link interface with a CompactPCI (3U or 6U) form factor

The cPCI DV C-Link is a Camera Link frame grabber that provides high-resolution capture of CCD and CMOS video images. Two MDR 26 connectors support one medium, or up to two base-mode, cameras.

The half height board fits in a CompactPCI slot. 3U and 6U versions are available. Image capture and display is in real-time, and camera speed, resolution, and number of buffers is limited by your bandwidth and memory only.

System must have a 3U or 6U compact PCI slot, and minimum 66 MHz (33 MHz will work at slower data rates). EDT device drivers and SDKs can be downloaded.

Product Data

Please use our frame grabber selector to find your preferred model.

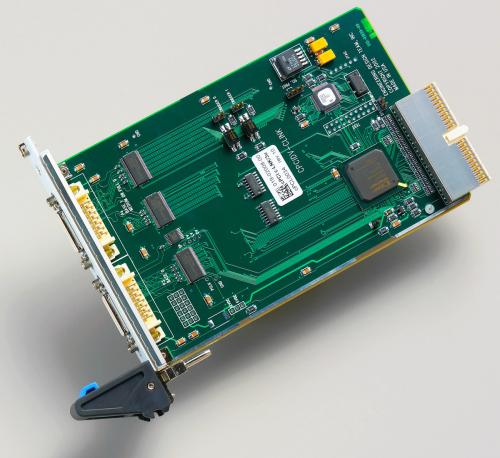

EDT cPCI DV C-Link video frame grabber with two MDR26, one opto-coupled Berg, and one optional DB15 connectors for data and control needs supporting base, dual base, medium modes.
cPCI DV C-Link: 2x MDR26, 1x opto-coupled Berg, and 1x optional DB15 connectors for data and control needs.
