PMC DV 1x MDR26 C-Link – EDT Camera Link interface with a PMC form factor

The PMC DV C-Link is a Camera Link image capture interface that provides high-resolution digital image capture from video in the PMC form factor. It has one MDR-26 pin connector for a single base-mode camera.

The board fits in any PMC slot. Image capture and display is in real-time, and camera speed, resolution, and number of buffers is limited by your bandwidth and memory only.

System must have a PMC bus. Device drivers and SDKs can be downloaded.

Product Data

Specifications: EDT PMC DV C-Link. PMC digital video (“no A” series) Camera Link interface. Datasheet
User Guide: AIA (LVDS / RS422) and Camera Link framegrabbers for PCI, cPCI, and PMC
Configuration Guide: Device Configuration Guide For devices used with EDT framegrabbers
Installation Guide: EDT Installation guide for board-level products

Please use our frame grabber selector to find your preferred model.

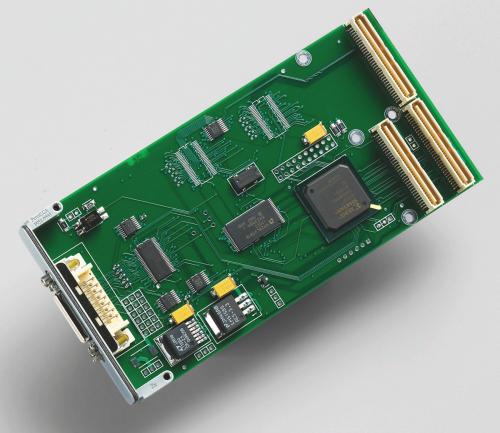

EDT PMC DV C-Link video frame grabber with one MDR26, one opto-coupled Berg, and one optional front panel Kings connectors for data and control needs supporting base mode. — PMC DV C-Link: 1x MDR26, 1x opto coupled Berg, and 1x optional front panel Kings connectors for data and control needs.
