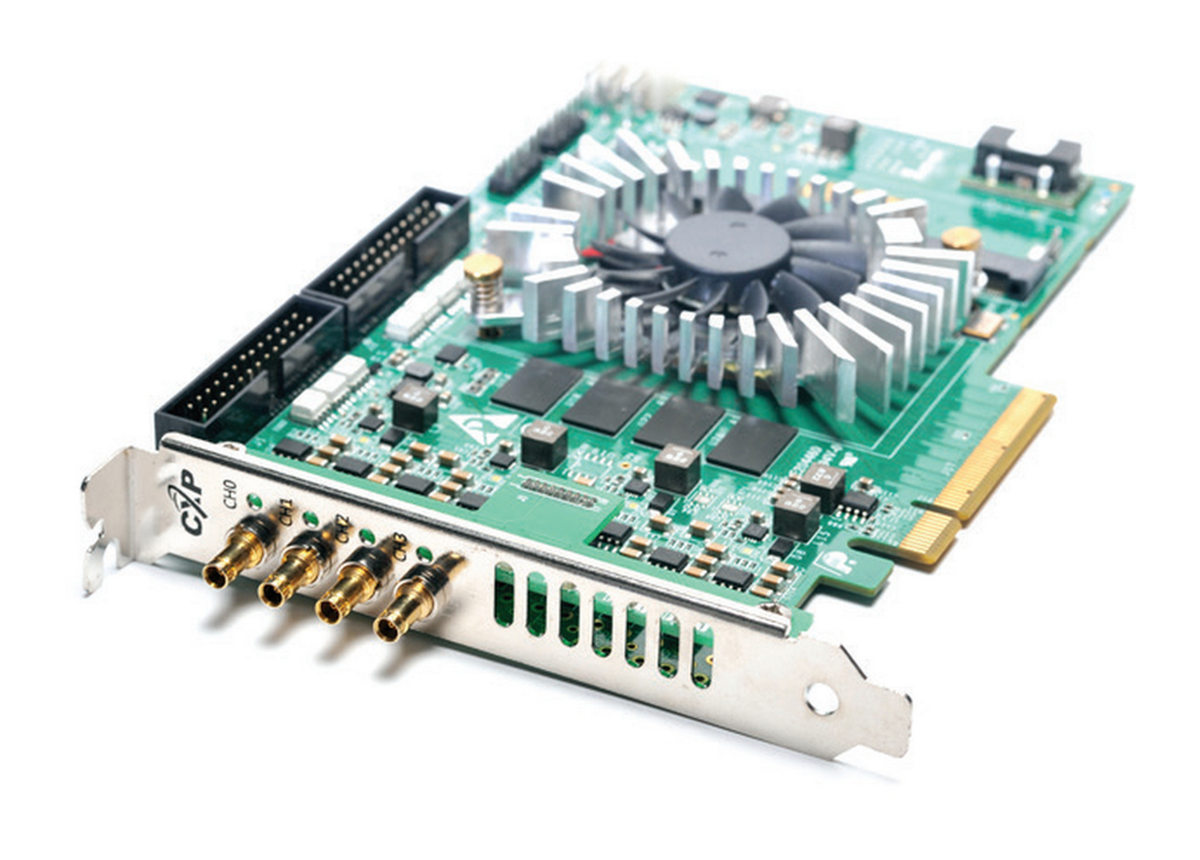

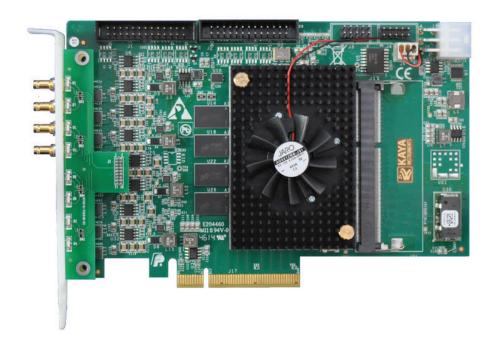

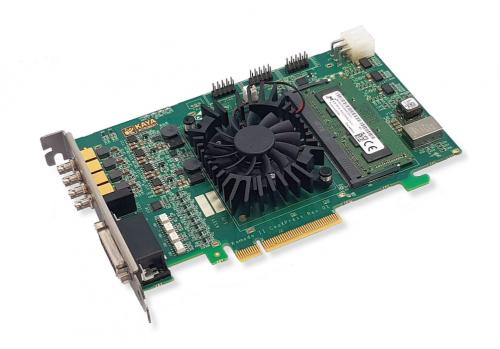

The Komodo II Quad CoaXPress frame grabber supports the CoaXPress v2.1 standard. It can receive video streams from up to 4 CXP 2.1 links in single, dual or quad mode. It can also be used for simultaneous capture from multiple cameras. Each link supports standard CXP2 bitrates of up to 12.5 Gbps. These features make the Komodo II Quad CoaXPress ideally suited for industrial, defense and aerospace Machine Vision Systems and applications.
The Komodo II Quad CoaXPress can receives video streams on the CoaXPress 12G links and transmits them to computer memory through a PCIe interface. This frame grabber also provides an external GPIO for machine control signals, such as triggers, timers, shaft encoders, exposure control and general I/O which can be controlled along with the video stream acquisition. This CXP 2 frame grabber uses standard Micro-BNC connectors as the CoaXPress 2.1 interface to the camera. It utilizes PCIe 3.0 x8 links for communication with Host PC for video uploading and configuration.
Features of the Kaya Instruments Komodo II CoaXPress 2.1 Frame Grabber
Up to 4 CoaXPress links support
Up to 4 Multi-streams
PCI Express card
PCIe 3.0 x8 bus
4 GB DDR4 frame buffer
Camera controls and triggers
Per-Link LED indication

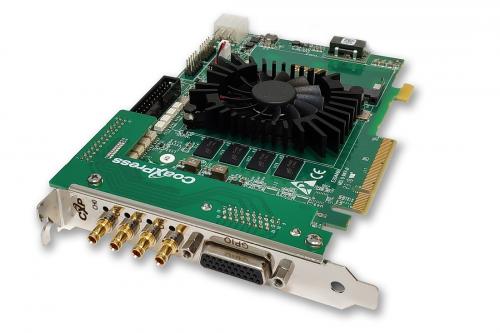

Flexible GPIO interface:
4 TTL configurable I/Os
4 LVTTL configurable I/Os
2 LVDS inputs
2 LVDS outputs
4 opto-isolated inputs
4 opto-isolated outputs
4 quadrature rotary encoders
Integrated strobe controller
4 timers
CoaXPress v2.1 compliant
Power over CoaXPress with 13 W per link
Multiple camera synchronization
Multiple Frame Grabbers synchronization
Micro-BNC connectors for CoaXPress links
GUI Interface
Supporting Windows, Linux OS and Nvidia Jetpack
API for custom application development
Plug-in modules for Matlab, HALCON, Cognex and Labview
Gen<i>Cam compliant
GenTL support
Data rates up to 12.5 Gbps per link
Transfer rates of up to 6,695 MB/s
0°C to +50°C operating environment temperatures

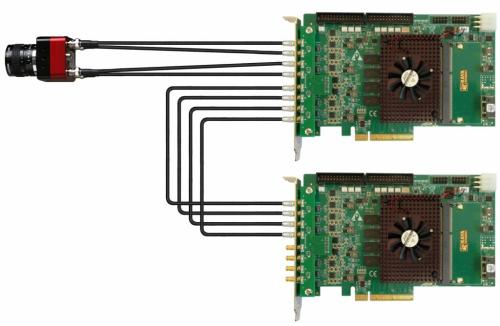

Single Camera Topology for Komodo II
Single, Dual or Quad CoaXPress links with up to 12.5 Gb per link topology
Maximum throughput to PCIe of 55 Gb/sec
Single Camera Topology: KY-FGK-II Komodo II CoaXPress.

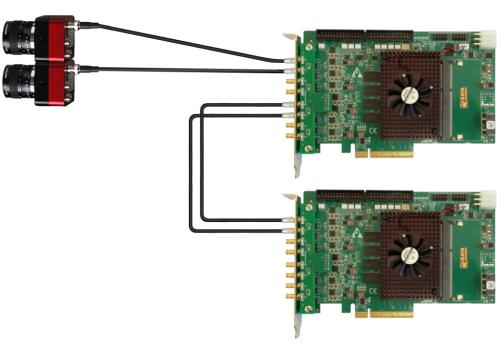

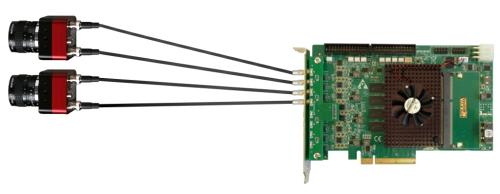

Dual Camera Topology for Komodo II
Two Single or Dual CoaXPress links with up to 12.5 Gb per link topology
Maximum throughput to PCIe of 55 Gb/sec
Dual Camera Topology: KY-FGK-II Komodo II CoaXPress.

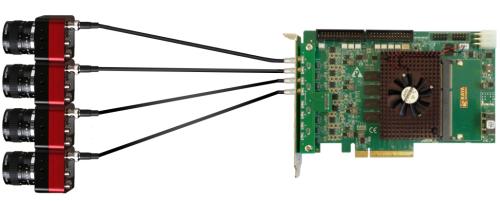

Quad Camera Topology for Komodo II
Four Single CoaXPress links with up to 12.5 Gb per link topology
Maximum throughput to PCIe of 55 Gb/sec
Quad Camera Topology: KY-FGK-II Komodo II CoaXPress.

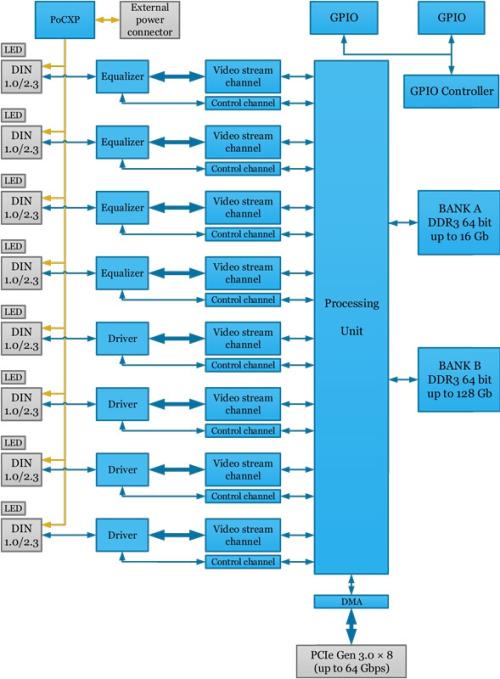

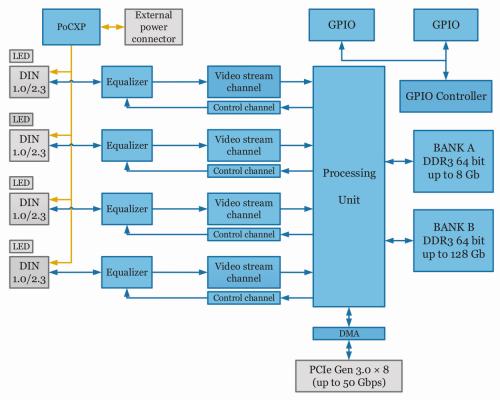

Kaya Komodo II Quad CXP-12 Frame Grabber FPGA: Multiple Camera / Frame Grabber synchronization.Hardware accelerator diagram: Kaya KY-FGK-II Komodo II Quad CoaXPress v2.1 FPGA board.
