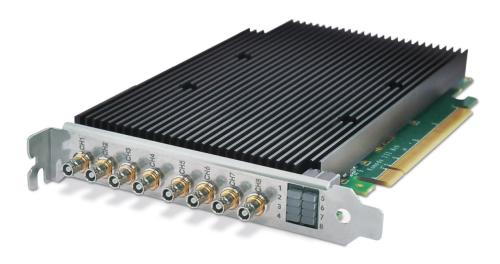

Kaya Instruments "Komodo III" 8 Channel CXP 12G CoaXPress 2.1 Frame Grabber
Kaya Instruments „Komodo“ KY-FGK-III-CXP-8ch is a CoaXPress 2.1 frame grabber with 8 channels at 12.5G each for 50 Gbps throughput. Host communication is via PCIe Gen3 with 16 lanes.

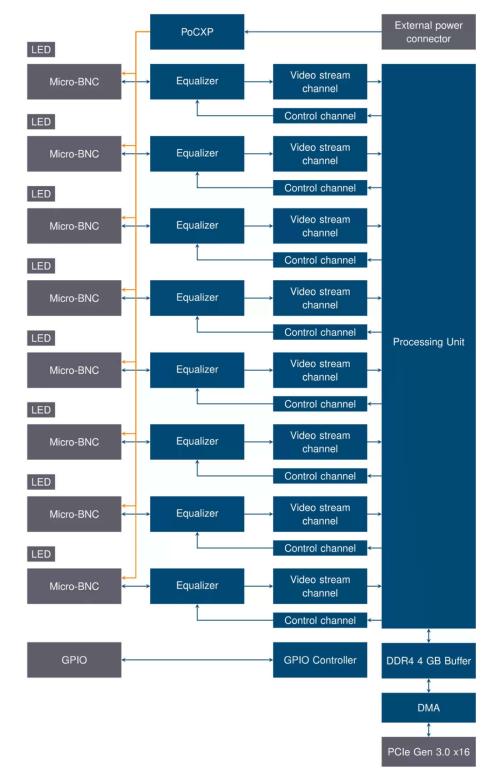

The Kaya Instruments “Komodo III” CoaXPress 12G frame grabber supports the CoaXPress v2.1 standard. It receives video streams from up to 8 CXP links in single, dual, or quad modes. It can also be used for simultaneous capture from multiple cameras. Each link supports standard CoaXPress bitrates of up to 12.5 Gbps.
The Komodo III CoaXPress 12G 8CH can easily receive video streams on the CoaXPress links and transmit them to computer memory through the PCIe interface. This CXP2 8CH frame grabber also provides an external GPIO for machine control signals, such as triggers, timers, shaft encoders, exposure control and general I/O which can be controlled besides video stream acquisition. This frame grabber uses standard Micro-BNC connectors as a CoaXPress interface to the camera. Host communication is via PCIe Gen3 x16 for video uploading and configuration.
Features of the KY-FGK-III-CXP-8ch
- 1 to 8 CoaXPress links support, 12.5Gbps per link
- PCIe Gen3 x16 Half-length card
- Up to 136 Gb image buffer
- Camera controls and triggers
- Per-link LED indication on card bracket
- Flexible machine I/O:
- 8 TTL configurable I/Os
- 8 LVTTL configurable I/Os
- 4 LVDS inputs/4 LVDS outputs
- 8 opto-isolated outputs/8 opto-isolated inputs
- 4 quadrature rotary encoders
- Integrated strobe controller
- 8 timers
- CoaXPress V2.1 compliant
- CoaXPress Multi-stream – 8 streams
- Power over CoaXPress with 13W per link
- Multiple Camera synchronization
- Multiple Frame Grabbers synchronization
- HD-BNC connectors for CoaXPress links
- GUI interface
- Supporting Windows and Linux OS
- API for developing custom applications
- Plug-ins modules for Matlab, HALCON and Labview
- Gen<i>Cam compliant
- GenTL support
- Data rates up to 12.5 Gbps per link
- Transfer Rate of up to 50 Gbps
- 0°C to 55°C operating environment temperature
