Kaya “Komodo” Dual CoF or Camera Link High Speed Compatible v1.2 links

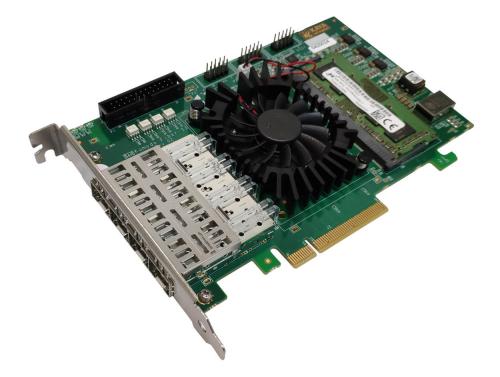

The Kaya Instruments Komodo II Dual is a best-in-class CoaxPress-over-Fiber or CLHS compatible frame grabber, supporting the CLHS X-Protocol v1.2 standard. It can receive video streams from up to 2 CoF or Camera Link High Speed compatible v1.2 links in single or dual modes. It can also be used for simultaneous capture from two cameras. Each link supports bitrates of up to 10.3125 Gbps. These features make the Komodo II Dual CoF or CameraLink High Speed compatible ideally suited for industrial, defense and aerospace Machine Vision Systems and applications.

Features

• Up to 2 CoF or CLHS compatible links support
• Up to 2 Multi-streams
• PCI Express card

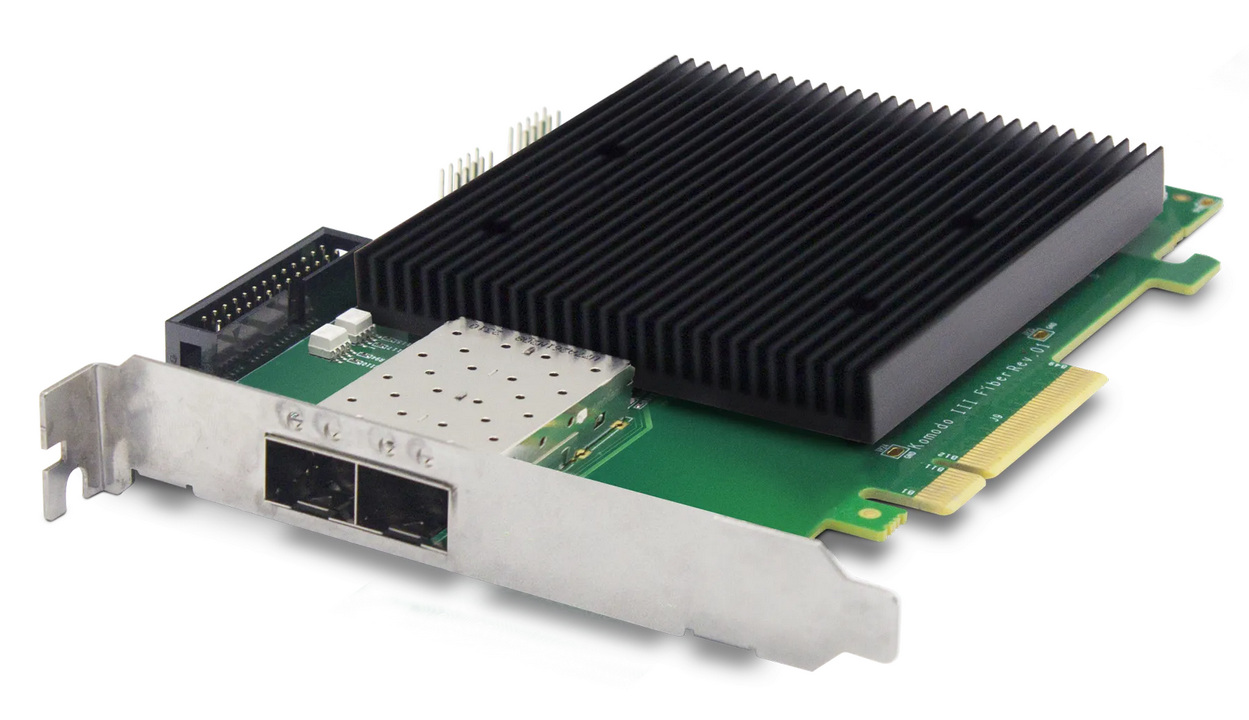

• PCIe 3.0 x8 ("Komodo II") or x16 ("Komodo III")
• 4 GB DDR4 frame buffer
• Camera controls and triggers
• Per-Link LED indication
• Flexible GPIO interface:

  • 4 TTL configurable I/Os
  • 4 LVTTL configurable I/Os
  • 2 LVDS inputs
  • 2 LVDS outputs
  • 4 opto-isolated inputs
  • 4 opto-isolated outputs
  • 4 quadrature rotary encoders
  • Integrated strobe controller
  • 4 timers
• CLHS compatible v1.2 compliant
• Multiple camera synchronization
• Multiple Frame Grabbers synchronization
• SFP+ connectors for CLHS compatible links
• GUI Interface
• Supporting Windows, Linux OS and Nvidia Jetpack
• API for custom application development
• Plug-in modules for Matlab, HALCON, Cognex and Labview
• Gen<i>Cam compliant
• GenTL support
• Data rates up to 10.3125 Gbps per link
• Transfer rates of up to 6,695 MB/s
• 0°C to +50°C operating environment temperatures

Order Code:

KY-FGF-II-CLHS-2ch

Product Data

• Specifications: Kaya Komodo II Dual CLHS compatible Frame Grabber. Datasheet
• Hardware Reference and Installation Guide: Kaya Frame Grabber and Simulator
