JetCam 19 – Global shutter camera with LUX 19 HS sensor and 2400 fps

The JetCam 19 by Kaya Instruments is a global shutter camera with a 20G (SFP+) or 40 Gbps (QSFP+) CLHS fiber optic interface. Capture is up to 2400 fps, and resolution is full HD 1920×1080. This camera has a global shutter sensor 10 μm CMOS LUX19HS. Lens control is direct and needs no external unit. Excellent for limited space due to small form factor and low power demand. A monitor can be connected as a view finder or to help installation via 3G SDI output. Cable length up to 10 km. The system is customizable to user specification and is compatible with Kaya Komodo frame grabbers and the Vision Point SDK. Mounts are Nikon F and B4 2/3”, both with integrated lens control.

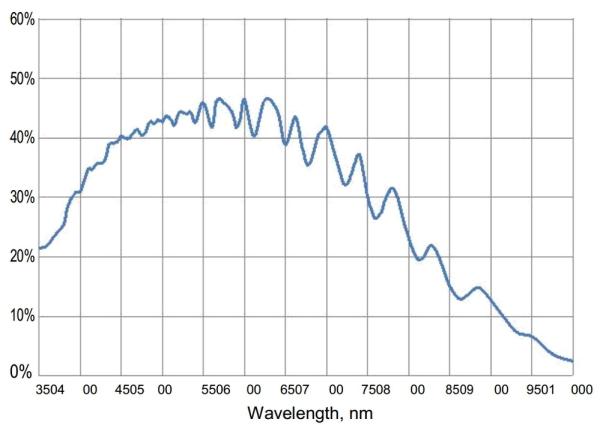

Waveform of the Kaya Instruments JetCam 19 shutter camera showing quantum efficiency of a CMOS LUX19HS sensor in a mono-color mode.
Waveform of the Kaya Instruments JetCam 19 camera: quantum efficiency of a LUX19HS sensor in a mono-color mode.

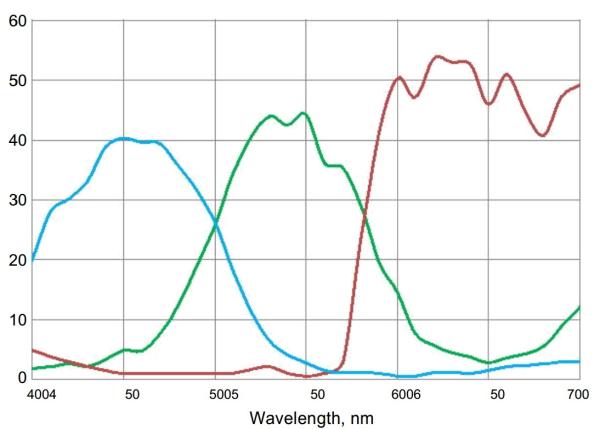

Waveform of the Kaya Instruments JetCam 19 camera: quantum efficiency of a LUX19HS sensor in a color mode.
Waveform of the Kaya Instruments JetCam 19 camera: quantum efficiency of a LUX19HS sensor in a color mode.
Workflow of the Kaya Instruments JetCam 19 shutter camera showing interaction among JetCam 19, View finder monitor, Frame grabber, Vision point driver and SDK.
Kaya Instruments JetCam 19 camera workflow: JetCam 19 / View finder monitor / Frame grabber / Vision point driver and SDK.

Product Data

Additional information

Please use our Camera Selector to find your preferred model.

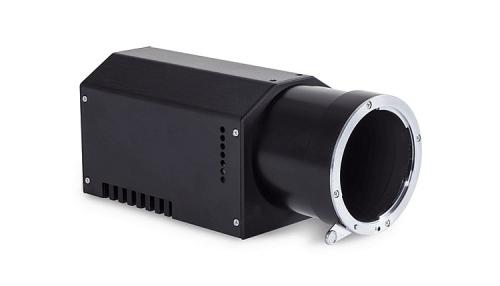

Kaya Instruments JetCam 19 camera is featured with F-Mount, B4, C-mount, Canon EF-mount, Birger EF-mount, PL mount
JetCam 19 camera: F-Mount, B4, C-mount, Canon EF-mount, Birger EF-mount, PL mount.

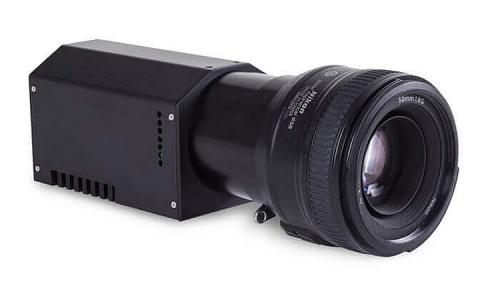

Kaya Instruments JetCam 19 shutter camera supporting Nikon, Fujinon, and RS232-RS485 custom lens control.
JetCam 19 camera: Fujinon lens control and custom lens control through RS232/RS485.

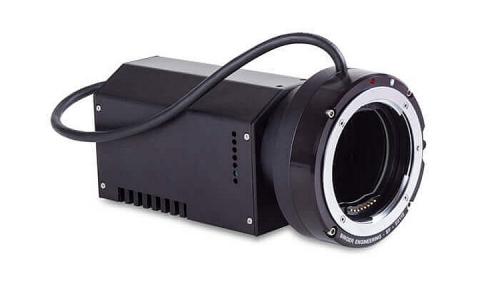

Kaya Instruments JetCam 19 shutter camera with Birger lens control.
JetCam 19 camera: Birger lens control.

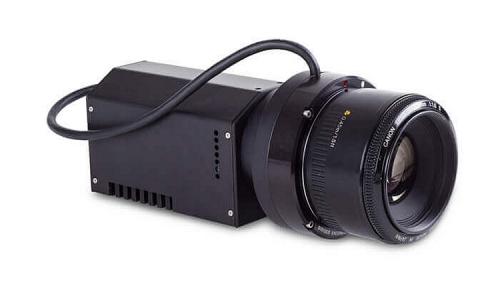

Kaya Instruments JetCam 19 camera with integrated Birger lens control via B4 2/3" mount plus Canon lens.
Kaya JetCam 19 camera with integrated Birger lens control and Canon lens.

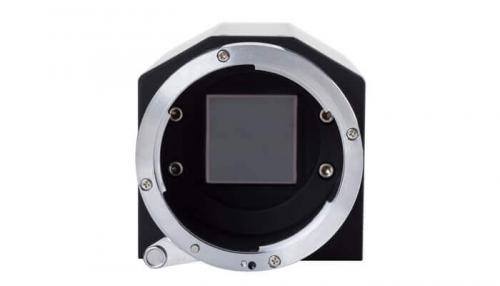

Kaya Instruments JetCam 19 – 2.1 MP sensor with 10 µm pixel size.
JetCam 19 camera with 2.1 MP sensor and 10 µm pixel size.

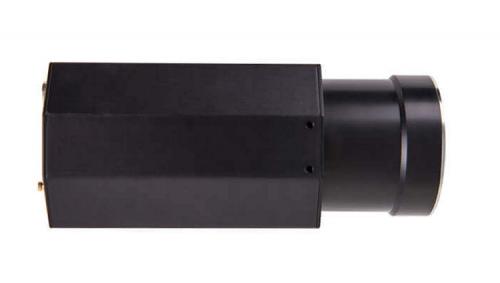

Kaya Instruments JetCam 19 – 4/3’’ format camera.
JetCam 19 4/3’’ format camera.

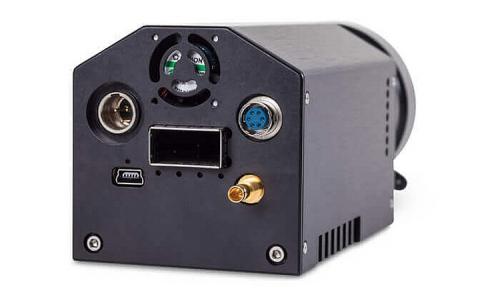

Kaya Instruments JetCam 19 with 40 Gbps Quad SFP plus interface.
JetCam 19 with 40 Gbps Quad SFP+ interface.
