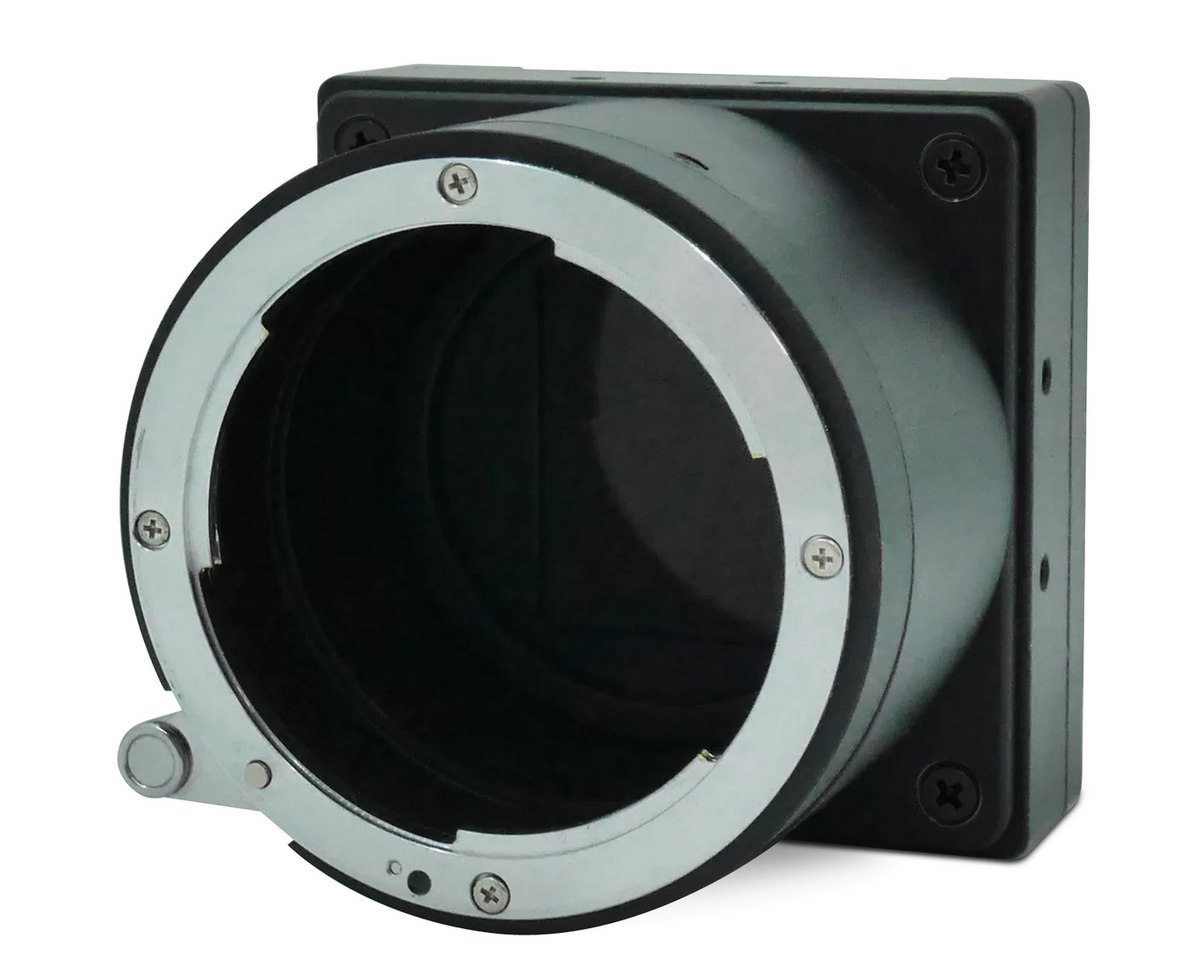

Kaya Instruments “Zinc3265” Camera | PCIe Gen4 4 lanes, Samtec cable | 9344 x 7000 | 50 fps | Gpixel GMAX3265 sensor

The Kaya Instruments Zinc3265 PCIe is an ultra-thin high speed, low-cost, low-power Global shutter CMOS camera with a Gen3 PCIe interface supporting up to 4 lanes over Samtec high speed connector/cable which supports 65.4 Megapixel high quality video at rates up to 50.0 fps.

With an extremely compact form factor, the Zinc3265 PCIe fits into small spaces. The superior sensor performance provides high quality images with great dynamic range, low

noise and excellent low-light vision capabilities.

Features

65.4 Megapixel up to 50.0 fps
Monochrome and Color sensor variation
Up to 15 W power at full rate
Full image processing feature set
PCI Express Gen 4 standard compliant
Gen<i>Cam compliant
Up to 4 PCI Express links
F, M42, EF or Active EF lens mounts available
Commercial and Industrial grade options
Full EMVA1288 report
Full built-in self-test (BIT)
Full built-in voltage testing
Customization as per user requirements

Product Data

Specifications: Kaya Zinc3265 PCIe 65.4 Megapixel Small, Rugged, Low Power Camera with Large Feature Set

Workflow of the Kaya Instruments Zinc3265 PCIe Gpixel GMAX3265 65.4 Megapixel Small, Rugged, Low Power Camera showing an interaction scheme among camera, frame grabber, and vision point software and SDK. — Kaya camera workflow: Zinc3265 PCIe Gpixel GMAX3265 65.4 Megapixel Camera / Frame grabber / Vision point software and SDK.

Please use our Camera Selector to find your preferred model.

Kaya Instruments Zinc3265 PCIe Global shutter CMOS camera with Large Feature Set: 4 lanes over Samtec and up to 50.0 fps video rates and up to 15 W power at full rate. — Kaya Zinc3265 PCIe Camera with Large Feature Set: 4 lanes over Samtec and up to 50.0 fps video rates.

Kaya Instruments Zinc3265 PCIe Gpixel GMAX3265 65.4 Megapixel Small, Rugged, Low Power Camera spectral response waveforms showing Color, Color with IR Cut Filter, Mono, Mono with IR Cut Filter options. — Kaya Zinc3265 PCIe Small, Rugged, Low Power Camera: Color / Color with IR Cut Filter / Mono / Mono with IR Cut Filter spectral response waveforms.
